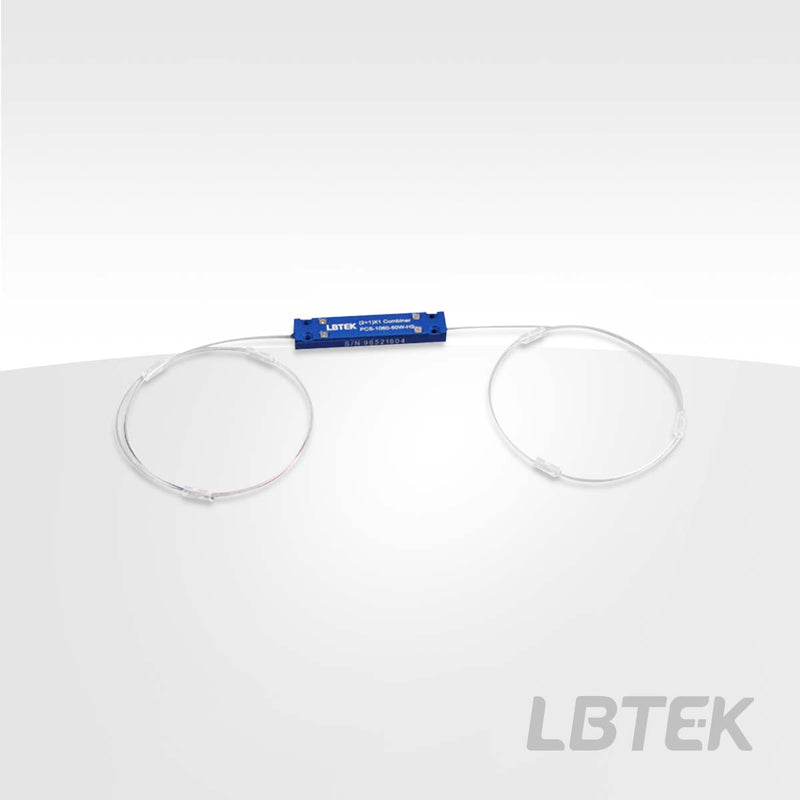

Pump and signal combiner PSC-1060-50W-H2
PSC-1060-50W-H2$398.48
In Stock
Key Specifications
Wavelength
800.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The LBTEK high-power packaged (2+1)×1 pump and signal combiner is suitable for 50W power systems, featuring high power tolerance and efficient heat dissipation to ensure stable operation under high-power conditions. It also boasts excellent performance characteristics such as low insertion loss, high pump efficiency, and stability. Each device undergoes comprehensive parameter testing before leaving the factory and comes with a test report to guarantee its performance.
- (2+1)×1 Structure
- Signal Wavelength: 1040 nm-1080 nm
- Pump Wavelength: 800 nm-1000 nm
- High-Power Packaging, Maximum Optical Power per Arm 50 W
| Center Wavelength | 800.0 nm |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Fiber - Pump and Signal Combiners (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Pump and signal combiner PSC-1060-10W-L1 |
PSC-1060-10W-L1
| — | — | — | View |
| Pump and signal combiner PSC-1060-10W-L2 |
PSC-1060-10W-L2
| — | — | — | View |
| Pump and signal combiner PSC-1060-50W-H1 |
PSC-1060-50W-H1
| — | — | — | View |
| Pump and signal combiner PSC-1060-50W-H2 Current |
PSC-1060-50W-H2
| — | — | — |
