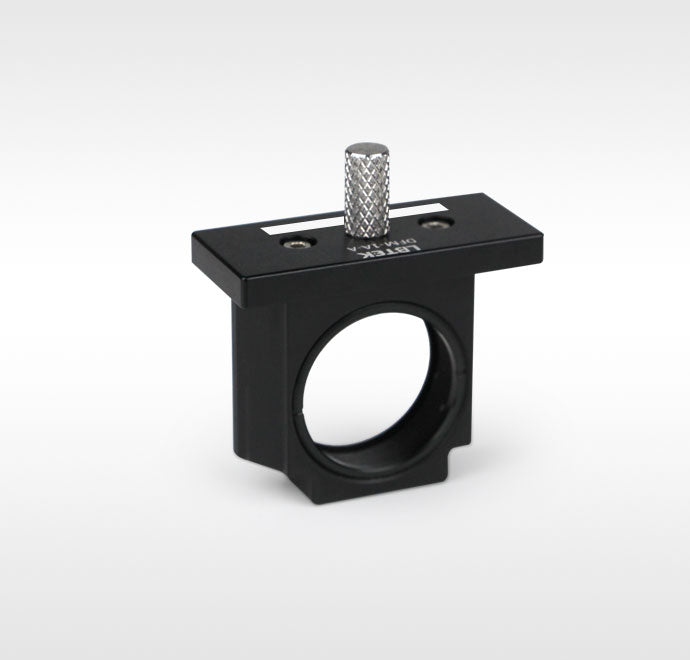

Removable Filter Holders DFM-1A-A
✔ In Stock — Ships Today
The Removable Filter Holder Inserts DFM-1A-A provided by LBTEK can accommodate optical components with Ø25.4 mm diameter and maximum thickness of 9 mm, designed to be used with the DFM-1A holder. The insert features a dovetail design for easy disassembly and assembly. Includes one SM1R retaining ring as a complimentary accessory.
Key Features
- Suitable for Ø25.4 mm optical components
- Dovetail groove quick-release structure
- For DFM-1A holder
Application
DFM-1A-A insert assembled together with the holder
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 9 mm |
| Applicable optical element diameter | 25.4 mm |
| Number of Adjusters | 1 |
| Mounting Hole Specification | SM1 |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Removable Filter Holders (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Removable Filter Holders DFM-1B |
DFM-1B
| — | — | — | View |
| Removable Filter Holders DFM-1A-A Current |
DFM-1A-A
| — | — | — | |
| Removable Filter Holders DFM-1A |
DFM-1A
| — | — | — | View |
