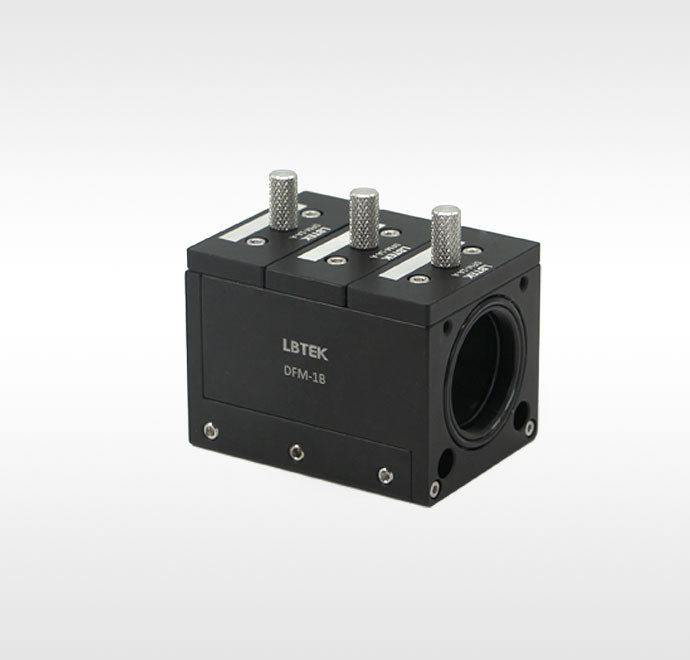

Removable Filter Holders — Model DFM-1B
✔ In Stock — Ships Today
The Multiple Removable Filter Holders DFM-1B provided by LBTEK can simultaneously hold 3 filters, and comes with 3 DFM-1A-A inserts for optical components with Ø25.4 mm diameter and maximum thickness of 9 mm. The inserts and main body are assembled and disassembled through a dovetail groove design. The bottom features an M4 threaded hole for connecting to optical posts, while the main body has M3 threaded holes and Ø6 mm through-holes for compatibility with 30 mm coaxial systems. All mating surfaces of the filter mount are designed with light-tight features, sealed with strips. Additionally, the end face includes a sealing ring that provides light-tight performance when stacking two holders together.
Key Features
- For optical components with Ø25.4 mm
- Compatible with 30 mm coaxial systems
- Multiple filters can be installed simultaneously
Application
Installed in coaxial systems
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Removable Filter Holders (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Removable Filter Holders DFM-1B Current |
DFM-1B
| — | — | — | |
| Removable Filter Holders DFM-1A-A |
DFM-1A-A
| — | — | — | View |
| Removable Filter Holders DFM-1A |
DFM-1A
| — | — | — | View |
