Rotation Mounts — Model RM05
✔ In Stock — Ships Today

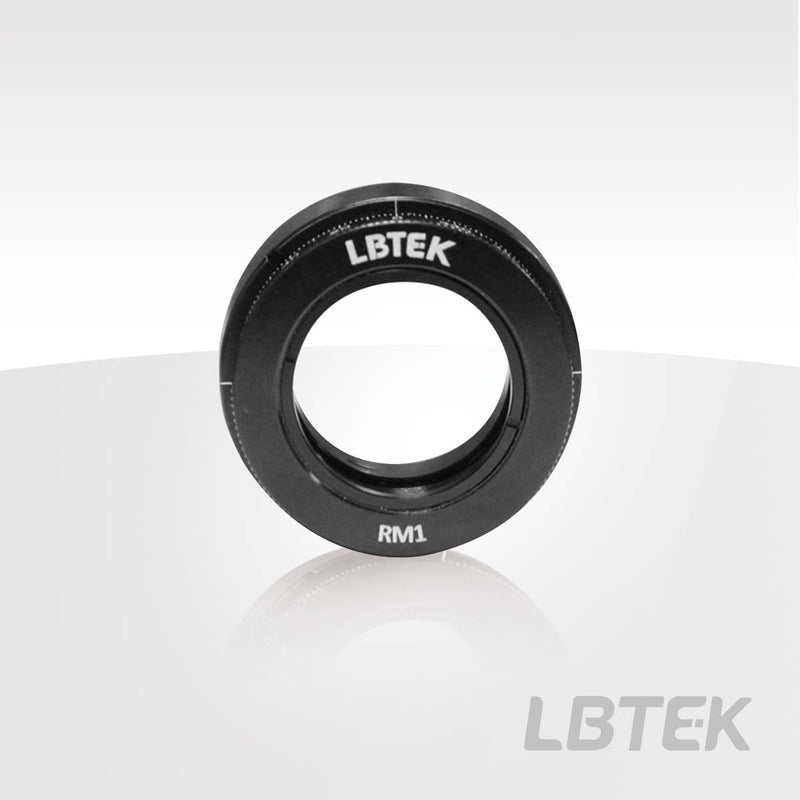

The LBTEK rotation mount is generally used for mounting polarizing optical components, allowing for 360° continuous rotation with a scale accuracy of 2°. The rotation position can be locked using the side screw (2.0 mm hex wrench). The RM05 features SM05 internal threads and SM1 external threads, while the RM1 has SM1 internal threads and SM1 external threads. They can mount optical components with diameters of Ø12.7mm and Ø25.4 mm respectively, with maximum mounting thicknesses of 7.2 mm or 9.4 mm. Note: The Ø39 outer diameter of the RM1 may interfere with 30 mm coaxial posts, making it unsuitable for coaxial systems.
Key Features
- For optical component diameter: Ø12.7mm or Ø25.4 mm
- Maximum thickness of mounted optical components: 7.2 mm or 9.4 mm
- 360° Continuous rotation, scale accuracy 2°
- Rotation mount can be locked with side screws
- Includes 1 SM05R or SM1R retaining ring
Application
Rotation Mount Installation
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Rotation Mounts (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Rotation Mounts TRM1 |
TRM1
| — | — | — | View |
| Rotation Mounts SM1LCR |
SM1LCR
| — | — | — | View |
| Rotation Mounts RM05 Current |
RM05
| — | — | — | |
| Rotation Mounts RM1 |
RM1
| — | — | — | View |
