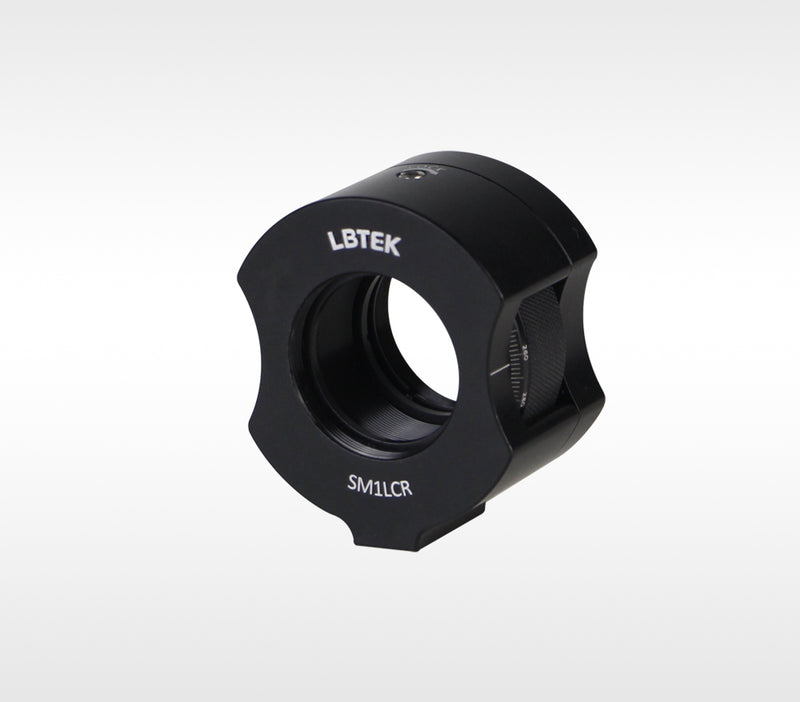

Rotation Mounts SM1LCR

The LBTEK Lens Rotation Mount is typically used for optical components that require rotation. This mount allows for 360° continuous rotation with a scale accuracy of 2°, and the rotation position can be locked using the knurled screw on top (2.0 mm hex wrench). The SM1LCR secures Ø25.4 mm optical components using an SM1 retaining ring, accommodating a mounting thickness of 1.6mm to 10mm. Additionally, both the front and rear of this mechanical component feature SM1 internal threads, enabling the installation of mechanical parts with SM1 external threads, such as lens tubes or cameras with adapters. Note: This mount has a fixed front and rear structure with a rotatable middle section. When using this mount, first remove the pre-installed retaining ring at the rear using an SM1 retaining ring wrench. Then, take out the included SM1 retaining ring from inside the rotatable knurled wheel, install the optical component, and secure it with the SM1 retaining ring. Finally, reinstall the rear retaining ring.
