Shortpass Dichroic Mirrors, 1-inch Round — Model DM10-550SP

Ø25.4 mm, substrate UV Fused Silica.

Product Description

  • Substrate Material: UV Fused Silica
  • Four sizes available: Ø12.7 mm, Ø25.4 mm, Ø50.8 mm, and 36.0 mm × 25.0 mm
  • Application: filtering and beam splitting

LBTEK Shortpass Dichroic Mirrors can separate light beams based on wavelength. Shortpass dichroic mirrors transmit light beams below the cut-off wavelength while reflecting those above the cut-off wavelength with high transmission and high reflection characteristics. Our dichroic mirrors offer 14 cut-off wavelength options: 425 nm, 490 nm, 505 nm, 550 nm, 605 nm, 638 nm, 650 nm, 780 nm, 805 nm, 950 nm, 1000 nm, 1180 nm, 1500 nm, and 1800 nm, with average transmission and reflection rates exceeding 90% within the specified wavelength ranges. LBTEK provides four size options: Ø12.7 mm, Ø25.4 mm, Ø50.8 mm, and 36.0 mm × 25.0 mm. A dichroic mirror has a filter coating on one surface and an antireflection coating on the other. The arrow points to the filter-coated surface. LBTEK also offers longpass dichroic mirrors, which transmit light above the cut-on wavelength while reflecting light below it. In addition to standard dichroic mirrors, LBTEK also offers a variety of custom dichroic mirrors. Please contact LBTEK Technical Support for special requirements.

Shortpass Dichroic Mirrors, 1-inch Round

  • Substrate Material: UVFS
  • Size: Ø25.4 mm
  • Application: Filtering and beam splitting

LBTEK dichroic mirrors can separate light beams based on wavelength. Shortpass dichroic mirrors transmit light beams below the cut-off wavelength while reflecting those above it, featuring high transmission and high reflection characteristics. Our dichroic mirrors offer various cutoff wavelengths to choose from, with average transmission and reflection rates exceeding 90% within the specified wavelength range. One surface of the dichroic mirror is coated with a filter coating, while the other side has an anti-reflection coating, with the arrow indicating the filter-coated surface.

Clear Aperture>90% CA
ReflectanceRabsb <2% @ 390 nm-533 nm
Thickness3.2 mm
Diameter25.4 mm
Substrate Material565 nm-800 nm(Ravga>90%, Rabs > 85%)
No documents available for this product.
CAD Drawing Download
3D Model (STL) STL — Download

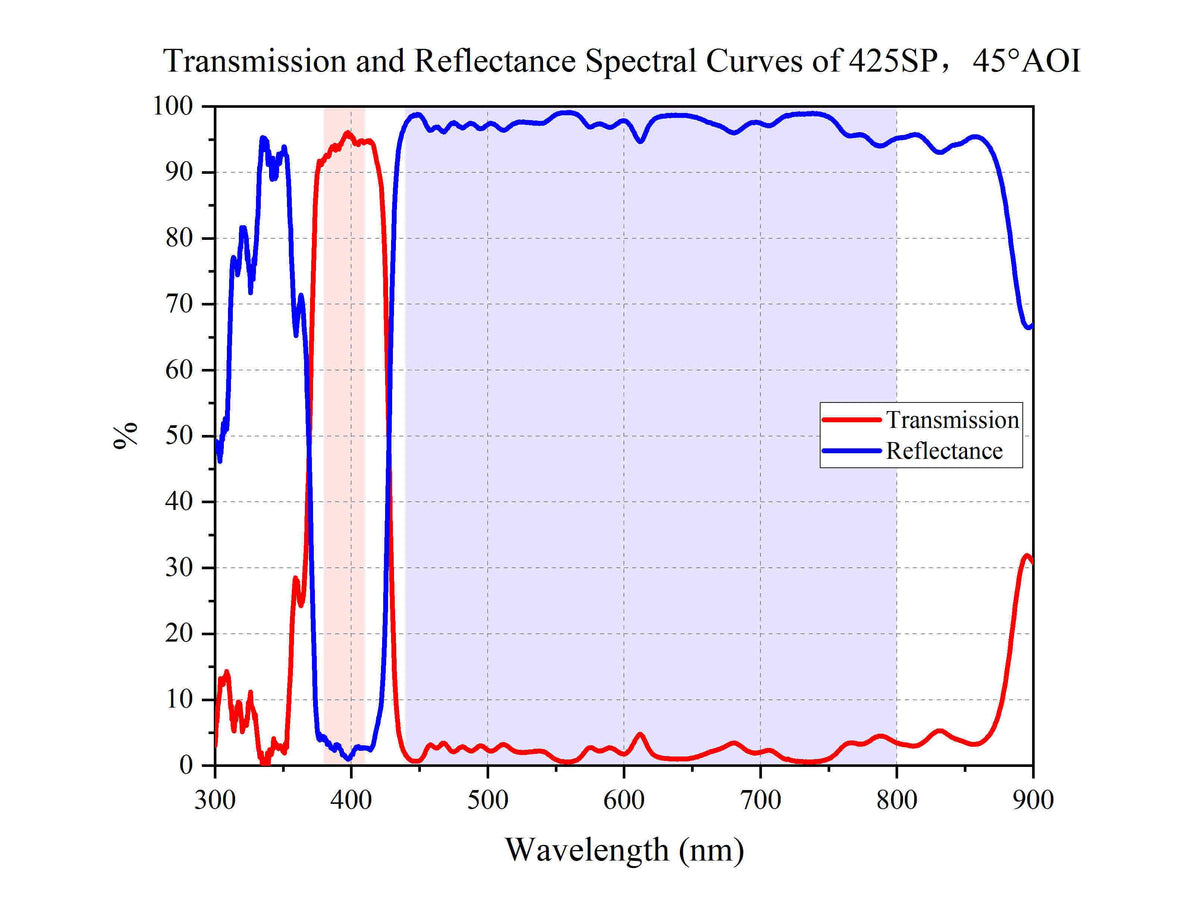

Transmission and Reflectance Spectral Curves of 425SP，45°AOI
Transmission and Reflectance Spectral Curves of 425SP，45°AOI

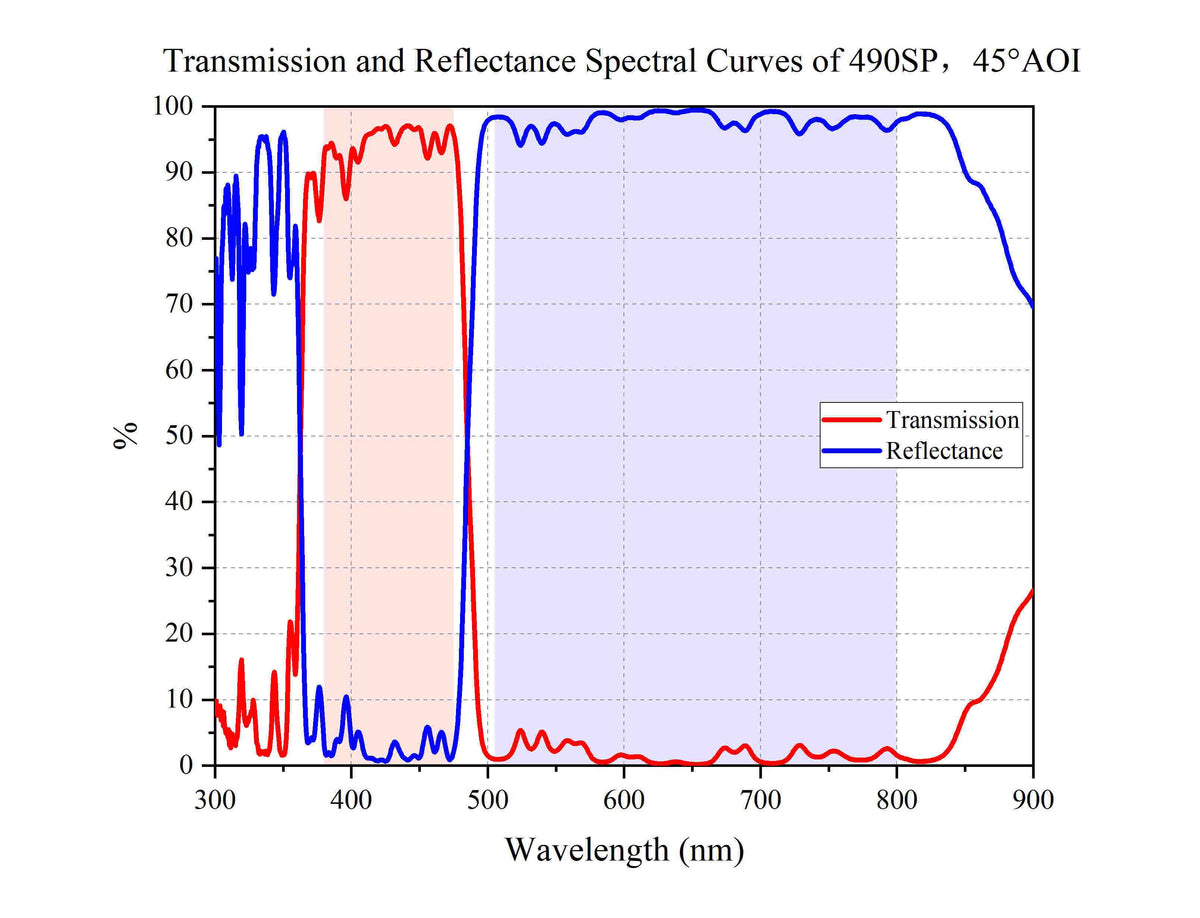

Transmission and Reflectance Spectral Curves of 490SP，45°AOI
Transmission and Reflectance Spectral Curves of 490SP，45°AOI

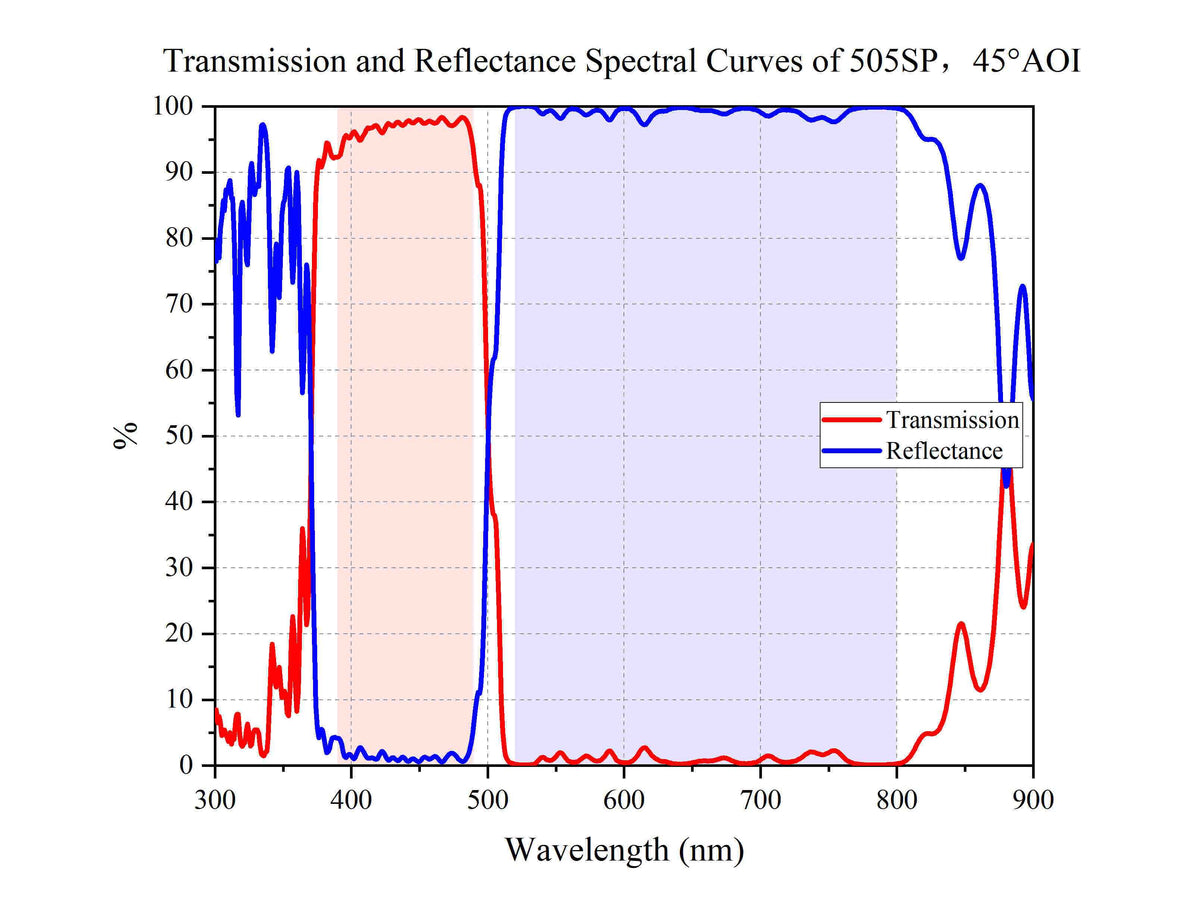

Transmission and Reflectance Spectral Curves of 505SP，45°AOI
Transmission and Reflectance Spectral Curves of 505SP，45°AOI

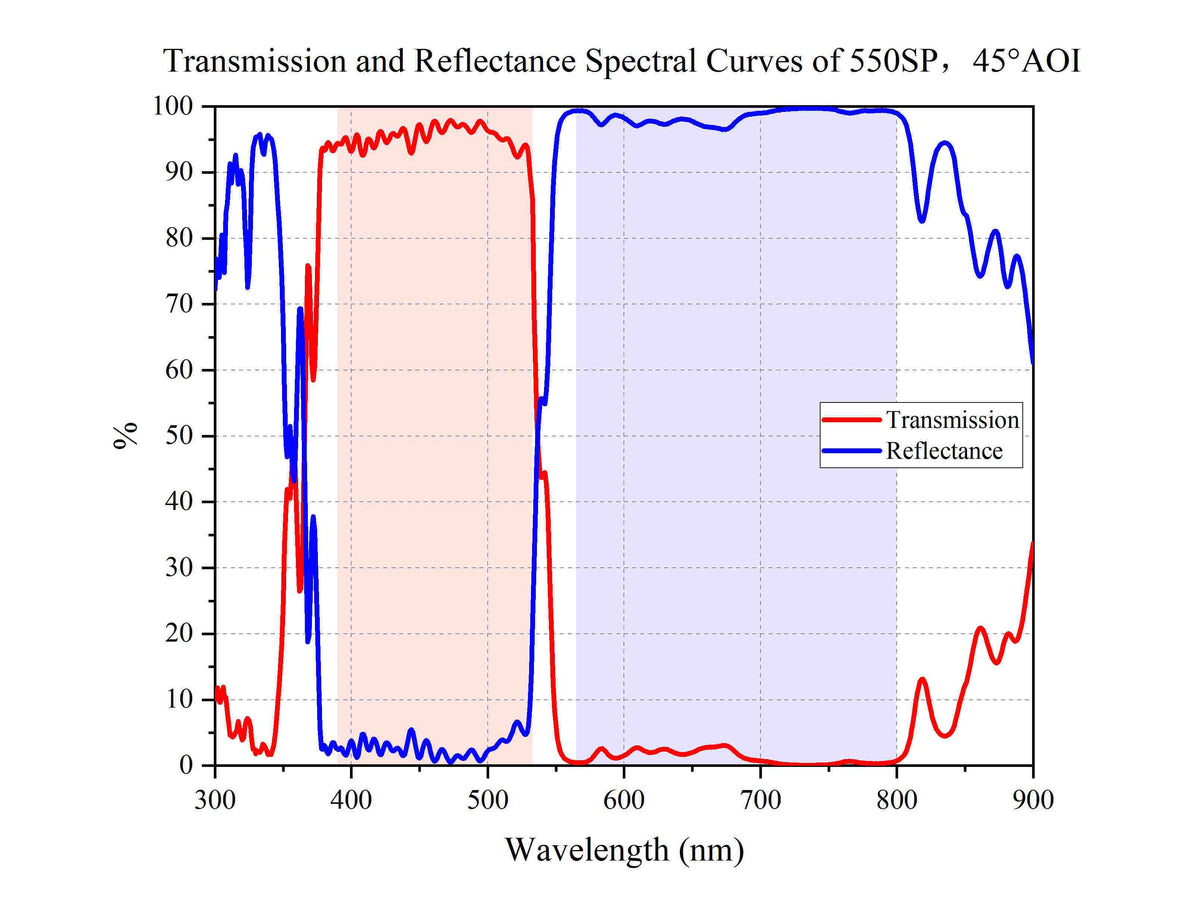

Transmission and Reflectance Spectral Curves of 550SP，45°AOI
Transmission and Reflectance Spectral Curves of 550SP，45°AOI

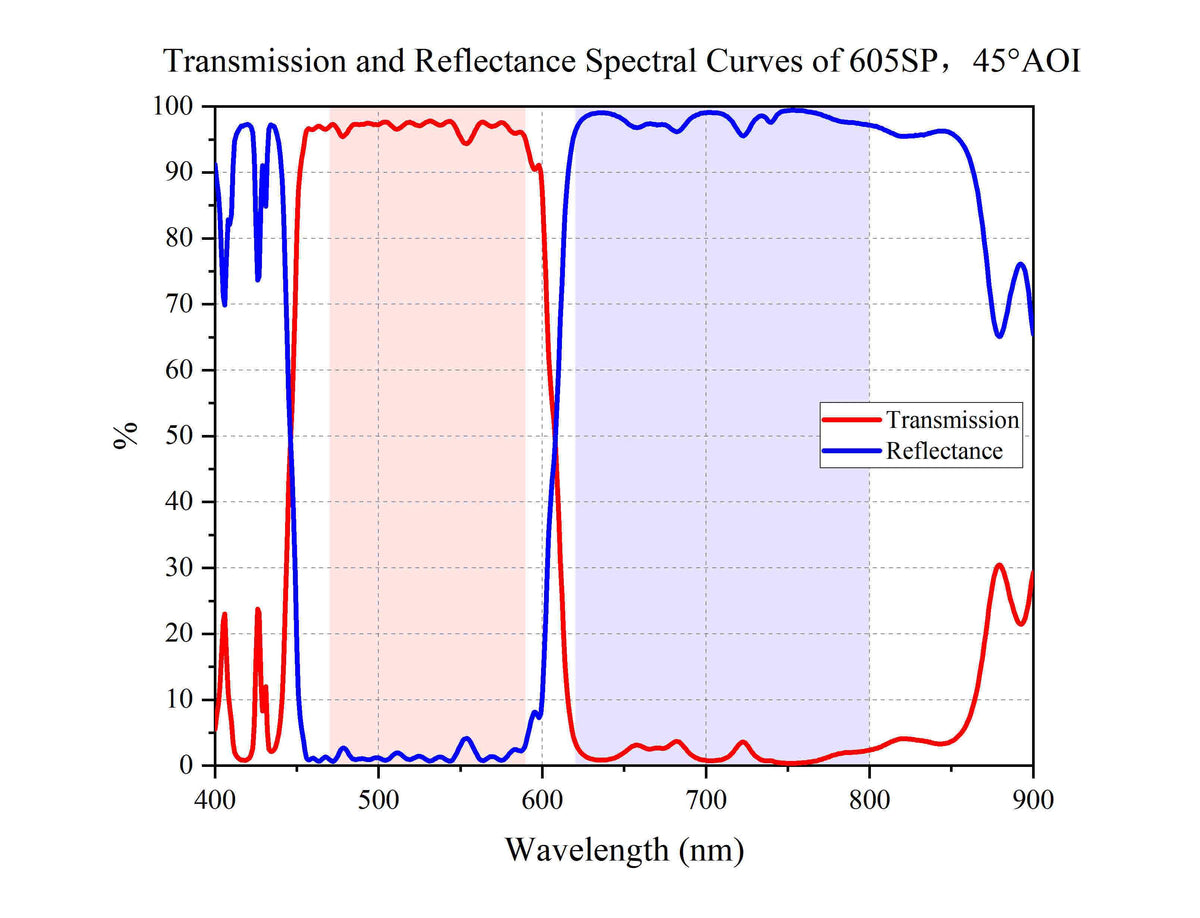

Transmission and Reflectance Spectral Curves of 605SP，45°AOI
Transmission and Reflectance Spectral Curves of 605SP，45°AOI

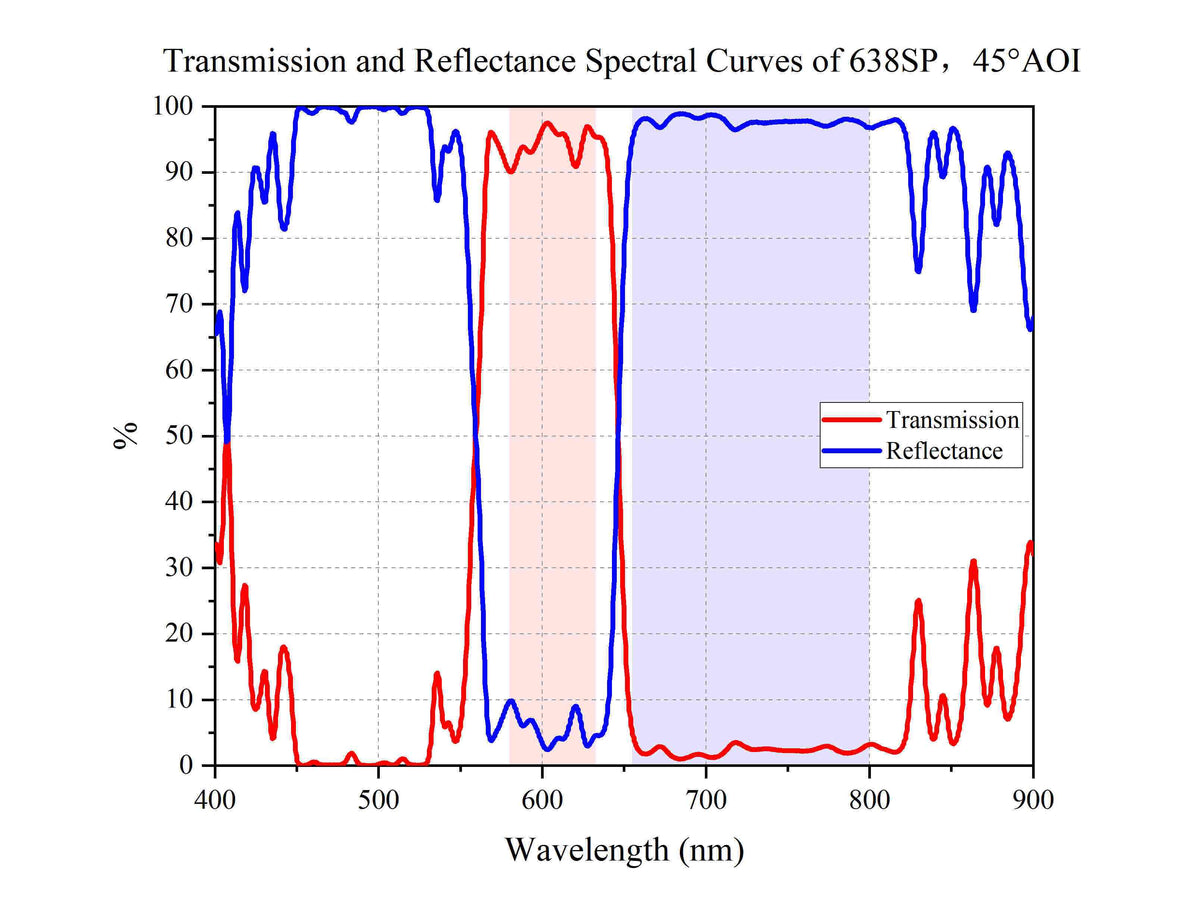

Transmission and Reflectance Spectral Curves of 638SP，45°AOI
Transmission and Reflectance Spectral Curves of 638SP，45°AOI

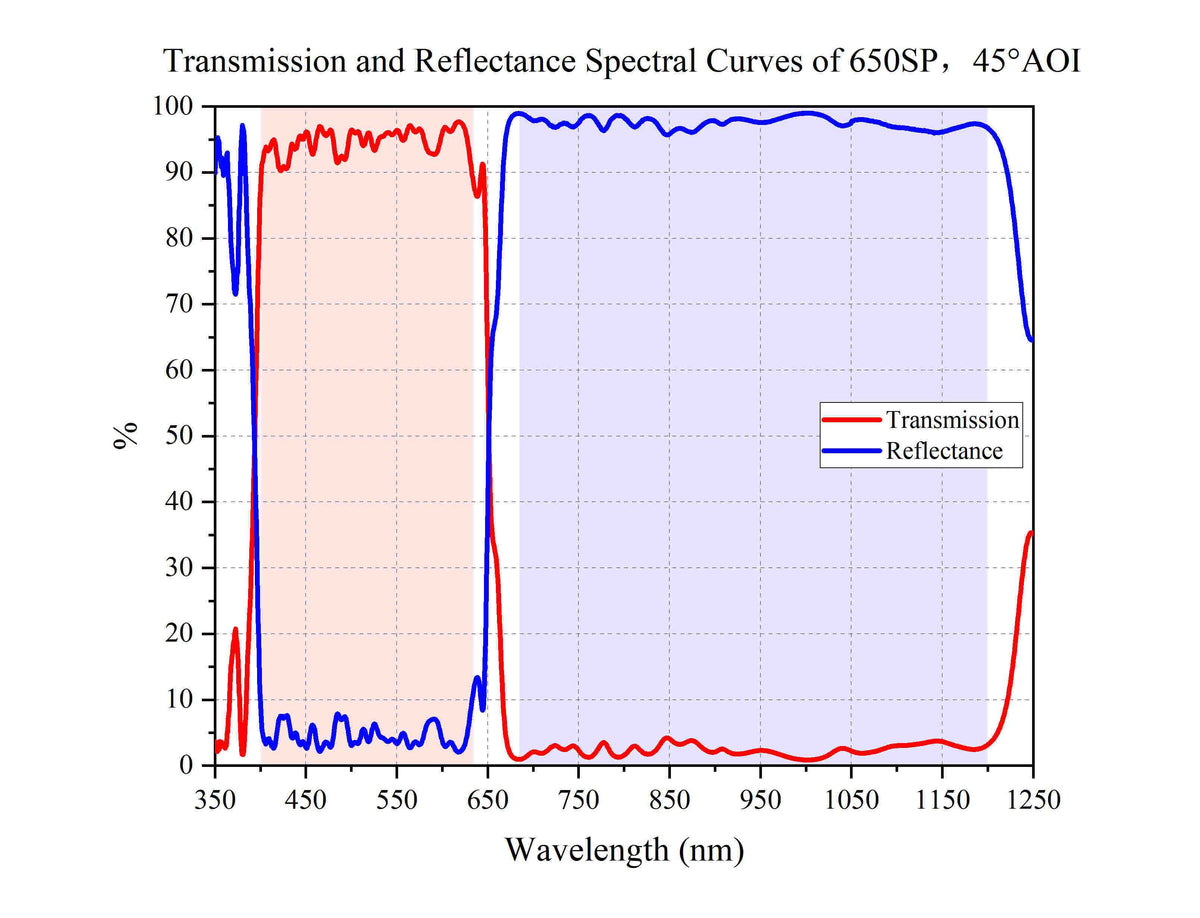

Transmission and Reflectance Spectral Curves of 650SP，45°AOI
Transmission and Reflectance Spectral Curves of 650SP，45°AOI

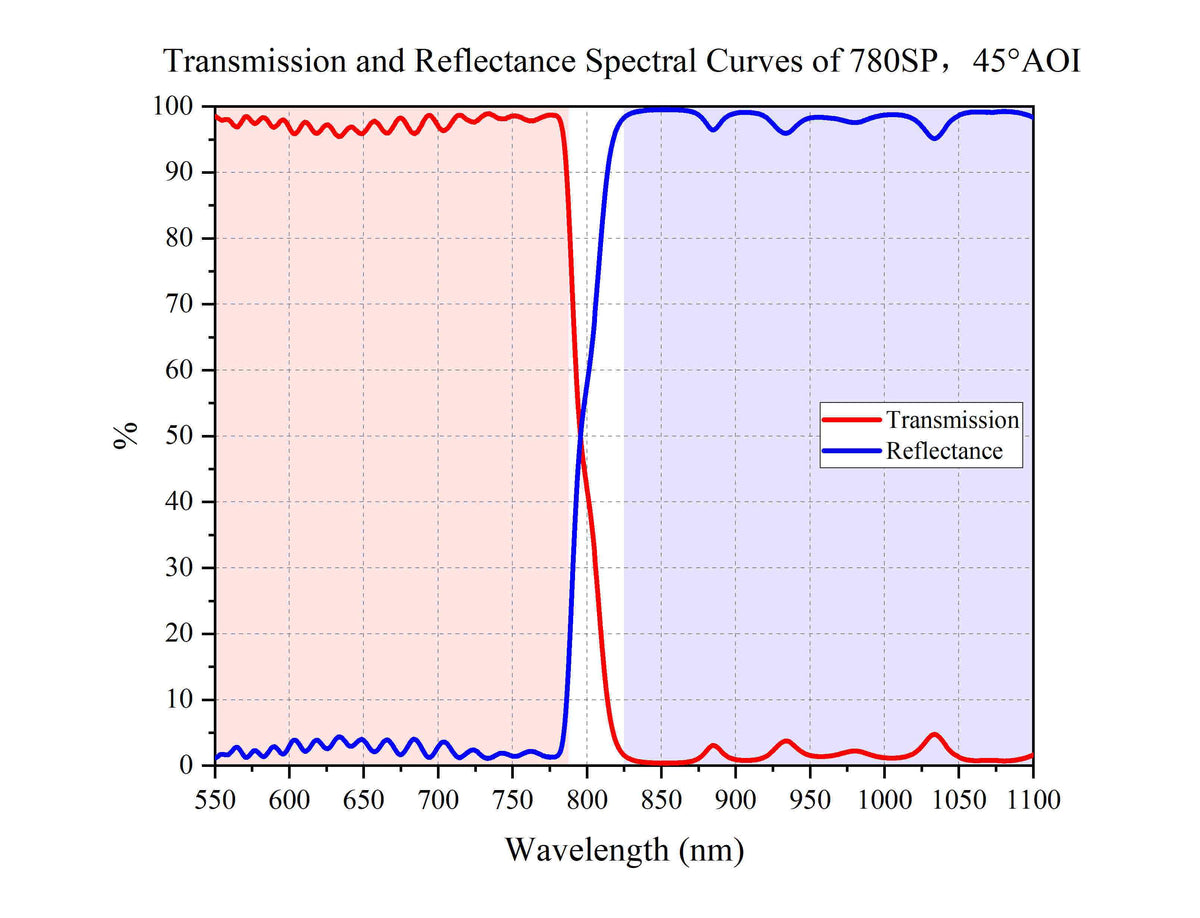

Transmission and Reflectance Spectral Curves of 780SP，45°AOI
Transmission and Reflectance Spectral Curves of 780SP，45°AOI

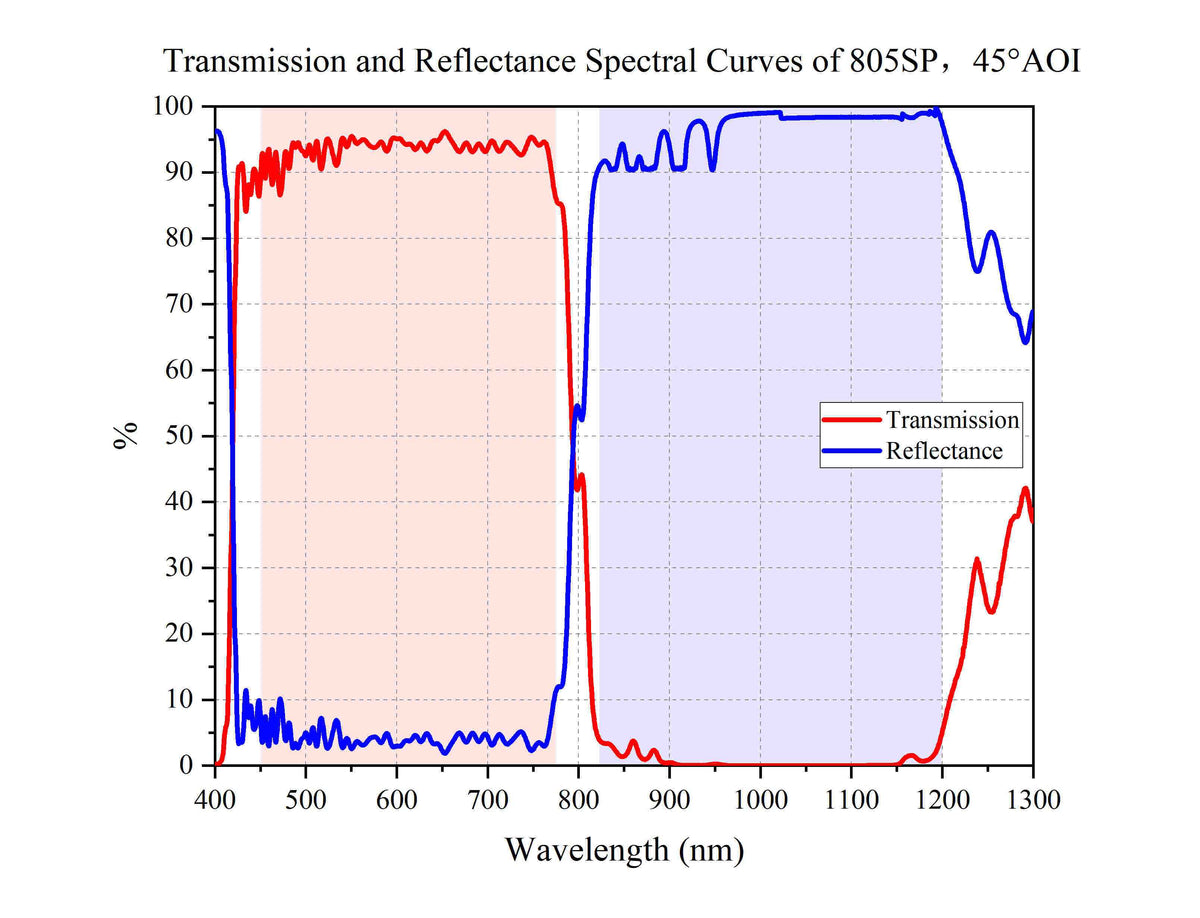

Transmission and Reflectance Spectral Curves of 805SP，45°AOI
Transmission and Reflectance Spectral Curves of 805SP，45°AOI

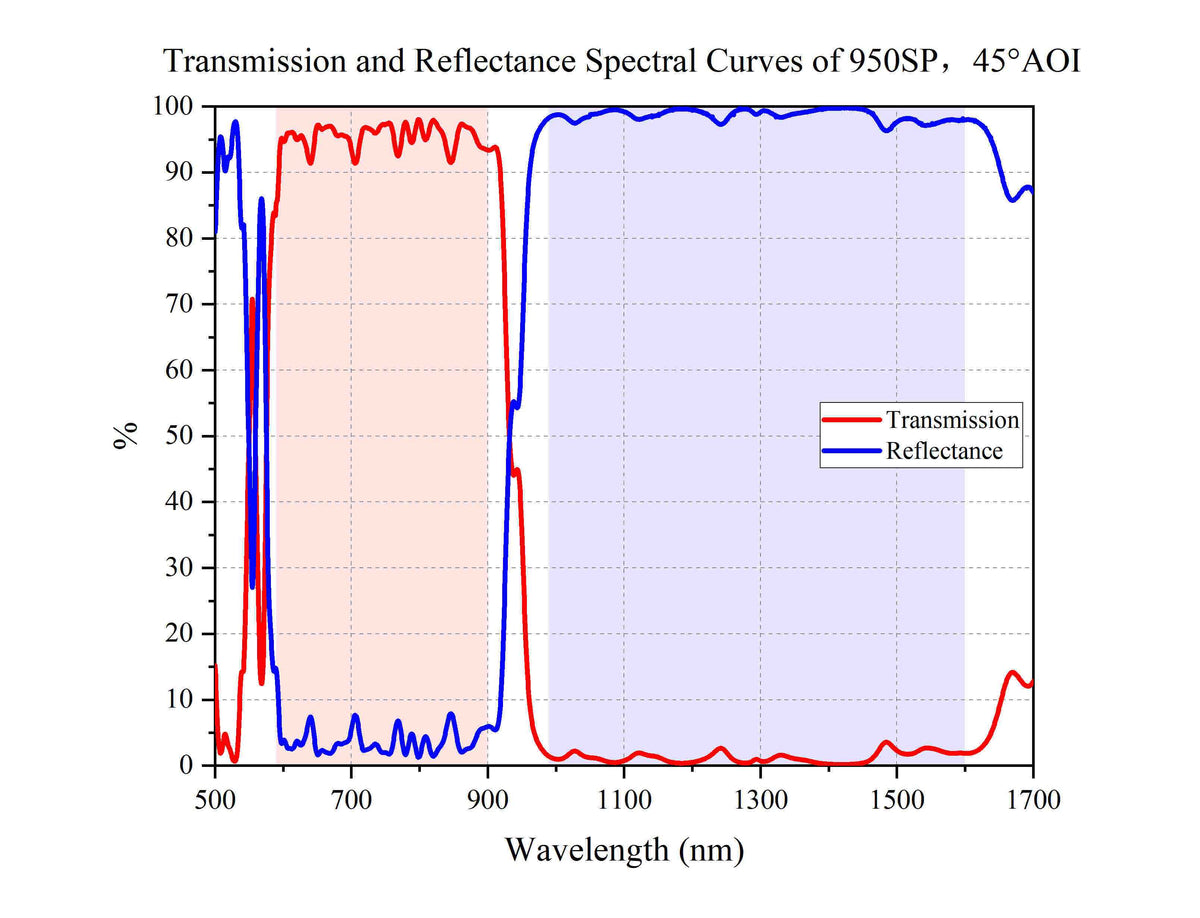

Transmission and Reflectance Spectral Curves of 950SP，45°AOI
Transmission and Reflectance Spectral Curves of 950SP，45°AOI

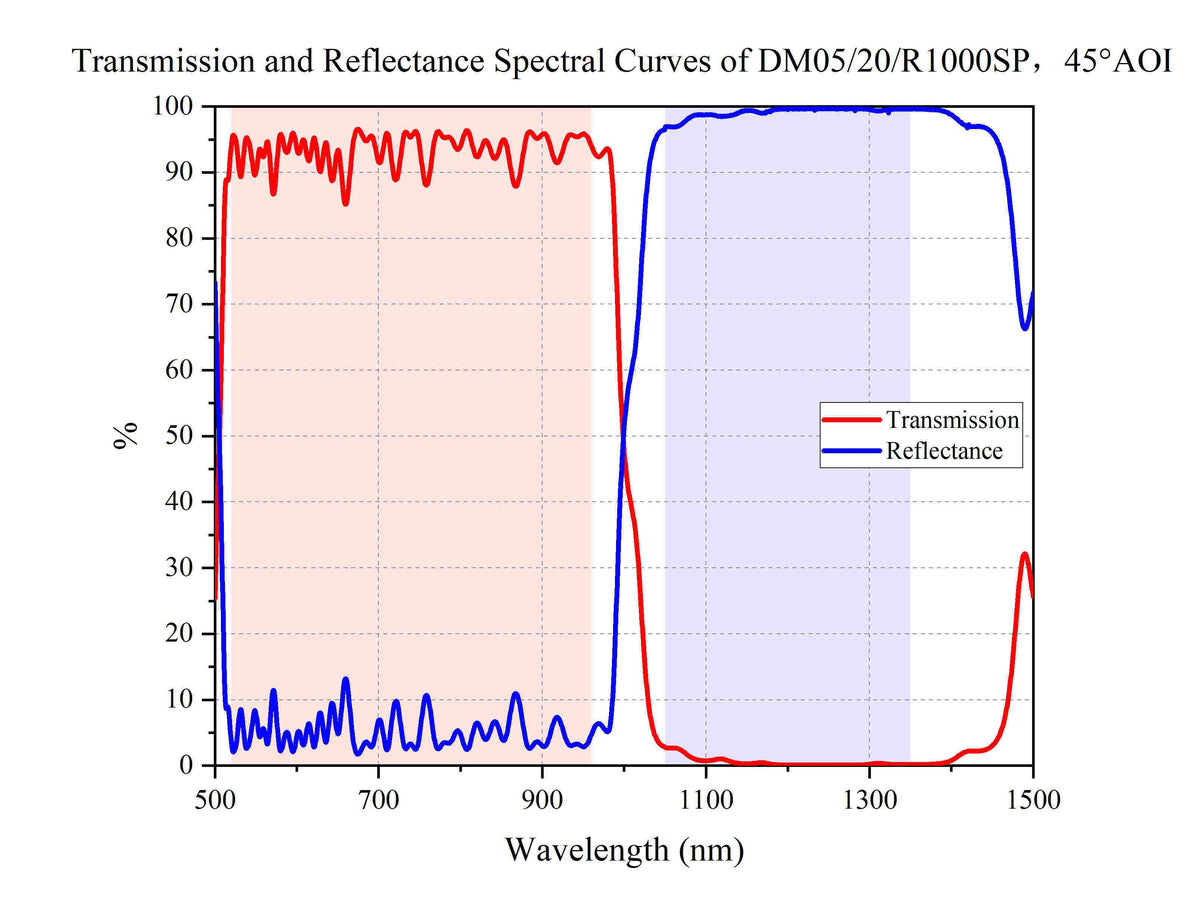

Transmission and Reflectance Spectral Curves of DM05_20_R-1000SP，45°AOI
Transmission and Reflectance Spectral Curves of DM05_20_R-1000SP，45°AOI

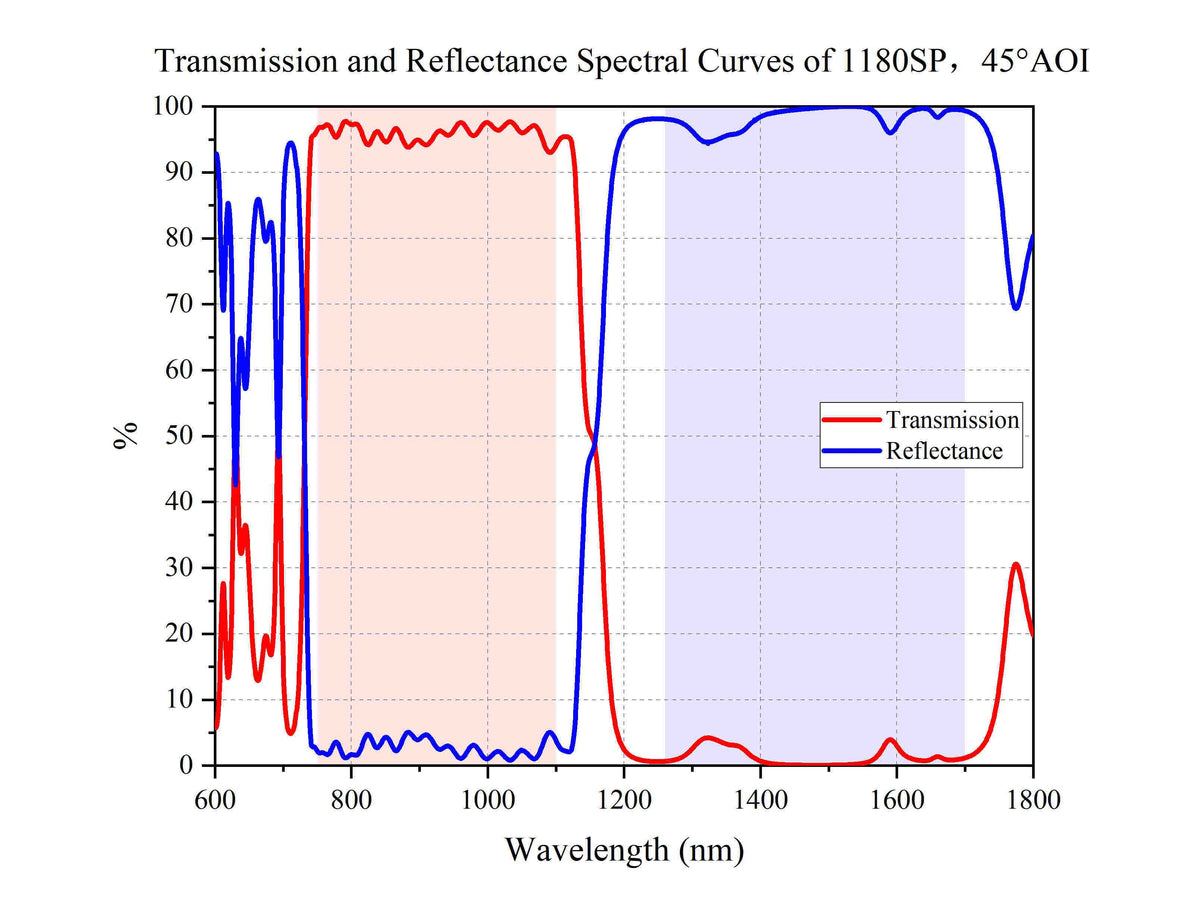

Transmission and Reflectance Spectral Curves of 1180SP，45°AOI
Transmission and Reflectance Spectral Curves of 1180SP，45°AOI

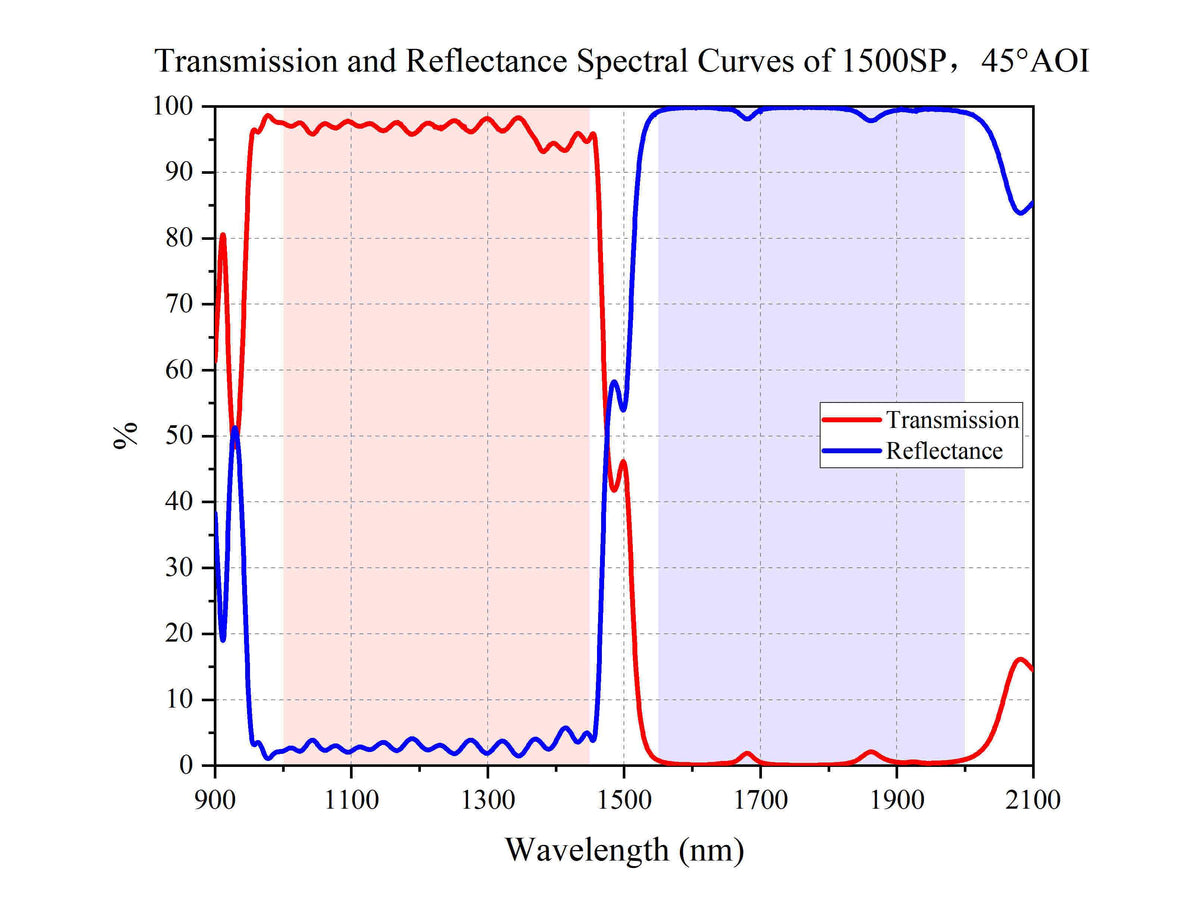

Transmission and Reflectance Spectral Curves of 1500SP，45°AOI
Transmission and Reflectance Spectral Curves of 1500SP，45°AOI

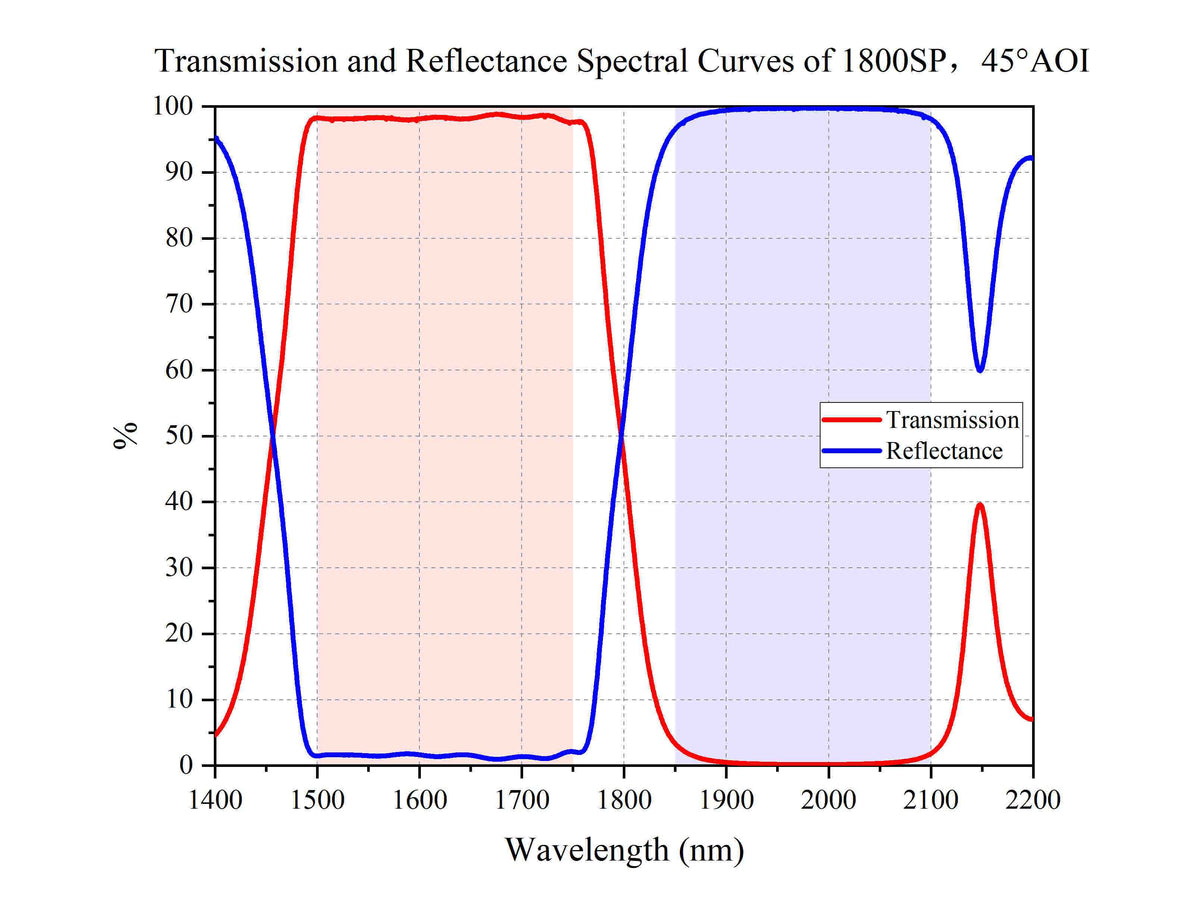

Transmission and Reflectance Spectral Curves of 1800SP，45°AOI
Transmission and Reflectance Spectral Curves of 1800SP，45°AOI

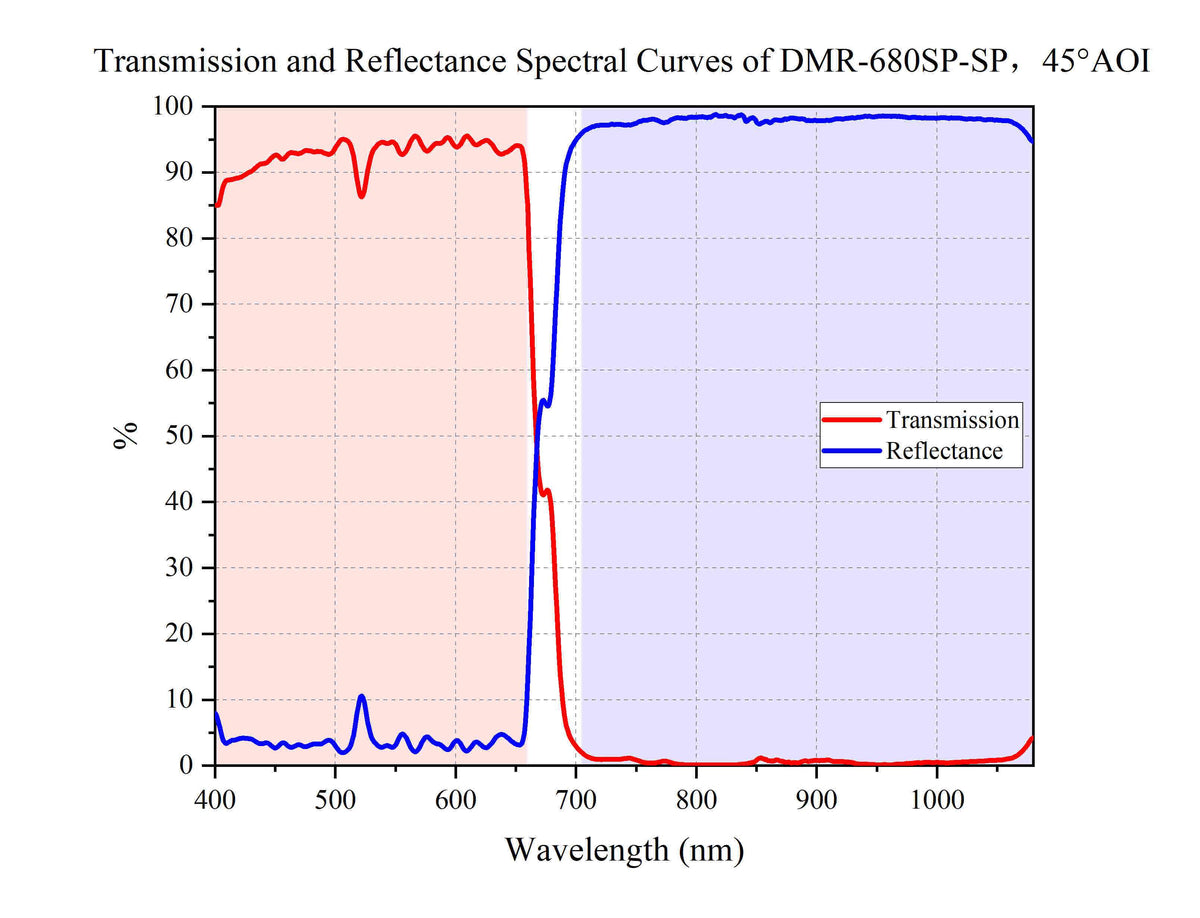

Transmission and Reflectance Spectral Curves of DMR-680SP-SP，45°AOI
