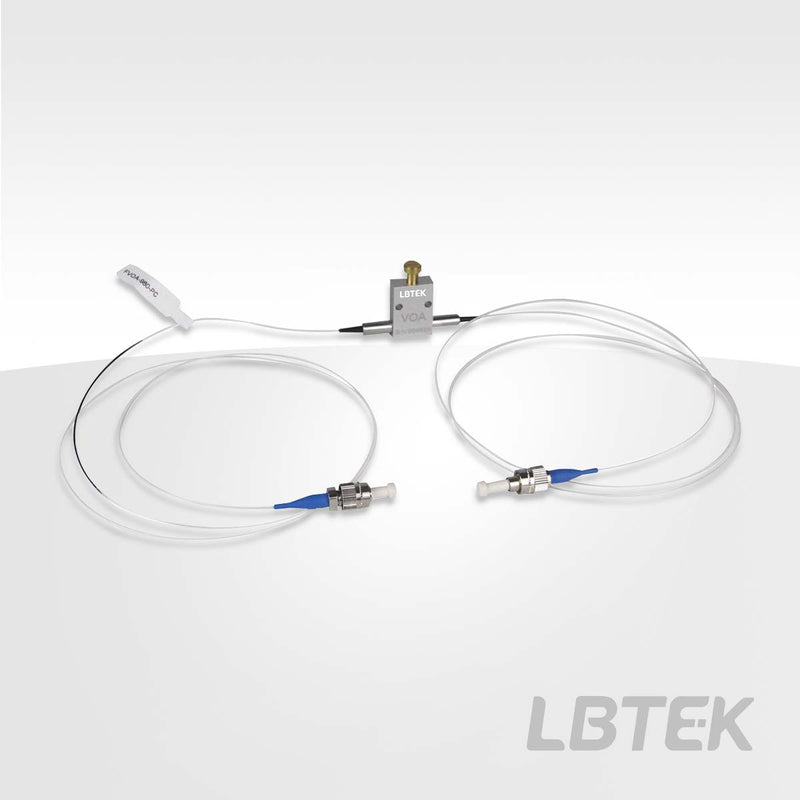

Single-mode Fiber Adjustable Attenuator FVOA-2000-PC
FVOA-2000-PC$949.90
In Stock
Key Specifications
Wavelength
2000.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The LBTEK single-mode fiber adjustable attenuator features excellent environmental stability, high return loss, and low insertion loss, making it an ideal choice for fiber laser and test instrument applications. Among them, the single-mode fiber adjustable attenuator with FC/PC connectors offers an optional wavelength range from 630 nm to 2050 nm, providing a wide attenuation range.
- FC/PC Connector
- Patch Cord Sheath Diameter: 0.9 mm
- Low Insertion Loss, High Return Loss
- Multiple Wavelength Options Available from 630 nm to 2050 nm
| Operating Wavelength | 2000 ± 30 nm |
| Attenuation range | 1.3 - 50 dB |
| Connector Type | FC/PC Connector |
| Return Loss | 45 dB |
| Design Wavelength | 2000 nm |
| Operating Temperature | -5 to 70 °C |
| Size | 26×18×8 mm |
| Fiber Type | Single-mode fiber |
| Fiber length | 1 m |
| Maximum Pulling Force | 5 N |
| Insertion Loss | 1.3 dB |
| Operating Temperature | -40 to 85 °C |
| Optical Power | 300 mW |
| Strain Relief Boot Diameter | 0.9 mm |
No CAD drawings available for this product.
