SM05 Lens Sleeve SM05-25B
SM05-25B$15.24
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
SM05 Lens Sleeve — Model SM05-25B
✔ In Stock — Ships Today

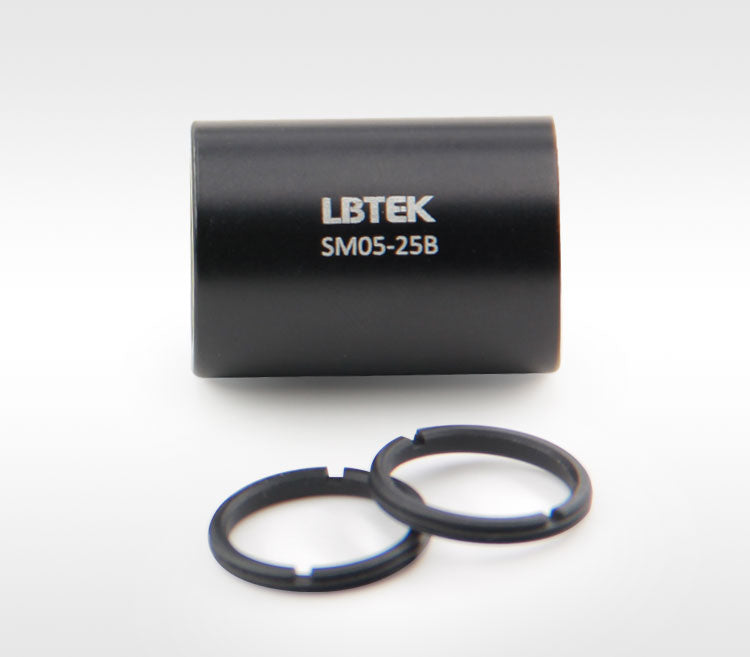

The LBTEK internally threaded lens sleeve features SM05 internal threads on both ends, allowing direct installation of Ø12.7 mm optical components using retaining rings. It can be combined with SM05-xxA, SM05-25C, or SM05-12.5T to extend its length. Each lens sleeve comes with two SM05R retaining rings for securing optical components.
Key Features
- SM05 internal threads on both ends
- Idea for mounting Ø12.7 mm optical elements
- Can use SM05-xxA or SM05-xxC or SM05-12.5T to extend lens tube length
- Includes 2 SM05R retaining rings
Application
Both ends come with SM05 internal thread
| Clear Aperture | 11.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: SM05 Lens Sleeve (14 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| SM05 Lens Sleeve SM05-50D |
SM05-50D
| — | — | — | View |
| SM05 Lens Sleeve SM05-75D |
SM05-75D
| — | — | — | View |
| SM05 Lens Sleeve SM05-25C |
SM05-25C
| — | — | — | View |
| SM05 Lens Sleeve SM05-25B Current |
SM05-25B
| — | — | — | |
| SM05 Lens Sleeve SM05-12.5B |
SM05-12.5B
| — | — | — | View |
| SM05 Lens Sleeve SM05-38B |
SM05-38B
| — | — | — | View |
| SM05 Lens Sleeve SM05-50B |
SM05-50B
| — | — | — | View |
| SM05 Lens Sleeve SM05-75B |
SM05-75B
| — | — | — | View |
| SM05 Lens Sleeve SM05-8A |
SM05-8A
| — | — | — | View |
| SM05 Lens Sleeve SM05-25A |
SM05-25A
| — | — | — | View |
| SM05 Lens Sleeve SM05-12.5A |
SM05-12.5A
| — | — | — | View |
| SM05 Lens Sleeve SM05-38A |
SM05-38A
| — | — | — | View |
| SM05 Lens Sleeve SM05-50A |
SM05-50A
| — | — | — | View |
| SM05 Lens Sleeve SM05-75A |
SM05-75A
| — | — | — | View |
