SM05 Lens Sleeve — Model SM05-38A
✔ In Stock — Ships Today

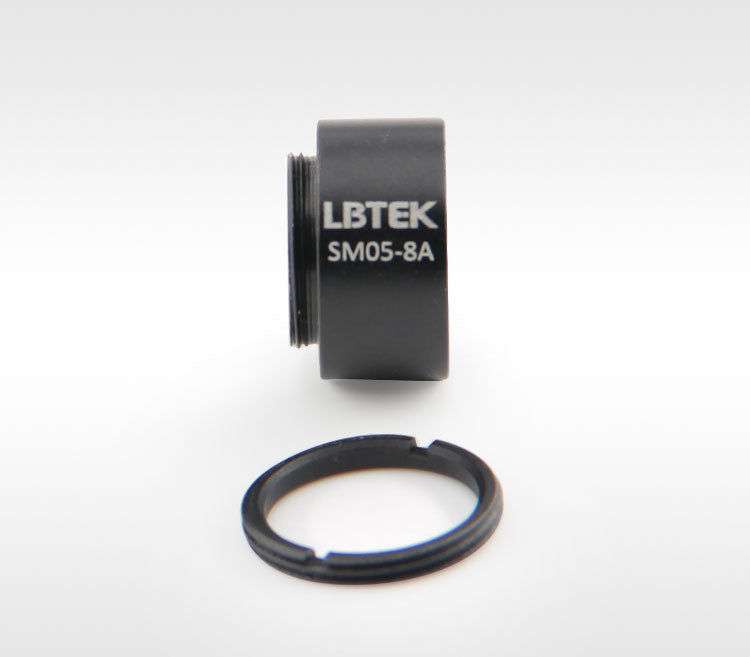

The LBTEK internal and external threaded lens sleeve features SM05 external threads on one end and SM05 internal threads on the other, designed to secure optical components with a diameter of Ø12.7 mm. Its expandable design makes it ideal for quickly assembling compact optical systems. Each lens sleeve comes with an SM05R retaining ring for securing optical components.
Key Features
- One end with SM05 external thread, the other end with SM05 internal thread
- Suitable for mounting Ø12.7 mm optical elements. Expandable design allows building multi-component optical systems
- Includes 1 SM05R retaining ring
- Multiple lengths available
Application
One end with SM05 external thread, the other end with SM05 internal thread
| Clear Aperture | 11.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: SM05 Lens Sleeve (14 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| SM05 Lens Sleeve SM05-50D |
SM05-50D
| — | — | — | View |
| SM05 Lens Sleeve SM05-75D |
SM05-75D
| — | — | — | View |
| SM05 Lens Sleeve SM05-25C |
SM05-25C
| — | — | — | View |
| SM05 Lens Sleeve SM05-25B |
SM05-25B
| — | — | — | View |
| SM05 Lens Sleeve SM05-12.5B |
SM05-12.5B
| — | — | — | View |
| SM05 Lens Sleeve SM05-38B |
SM05-38B
| — | — | — | View |
| SM05 Lens Sleeve SM05-50B |
SM05-50B
| — | — | — | View |
| SM05 Lens Sleeve SM05-75B |
SM05-75B
| — | — | — | View |
| SM05 Lens Sleeve SM05-8A |
SM05-8A
| — | — | — | View |
| SM05 Lens Sleeve SM05-25A |
SM05-25A
| — | — | — | View |
| SM05 Lens Sleeve SM05-12.5A |
SM05-12.5A
| — | — | — | View |
| SM05 Lens Sleeve SM05-38A Current |
SM05-38A
| — | — | — | |
| SM05 Lens Sleeve SM05-50A |
SM05-50A
| — | — | — | View |
| SM05 Lens Sleeve SM05-75A |
SM05-75A
| — | — | — | View |
