SM2 Lens Tube SM2-25B
SM2-25B$25.47
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

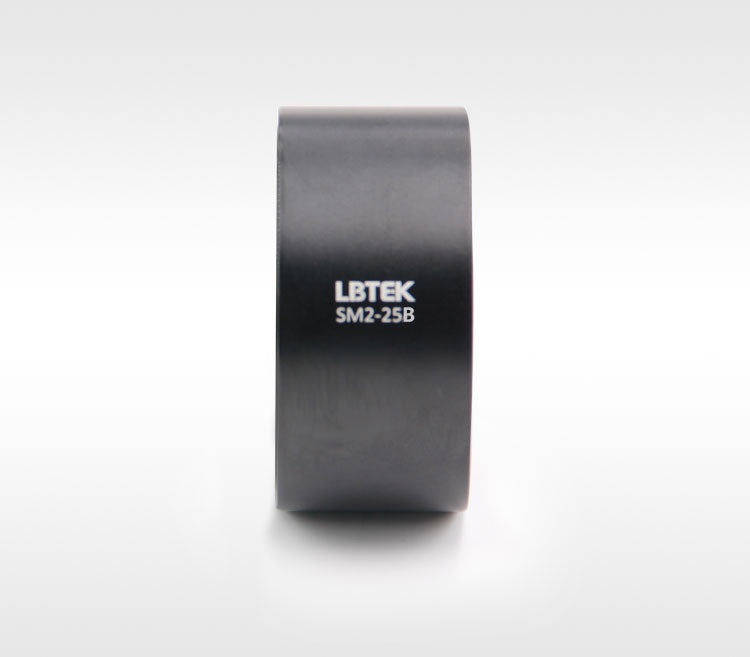

SM2 Lens Tube — Model SM2-25B
✔ In Stock — Ships Today
The LBTEK internal-threaded lens tube features SM2 internal threads on both ends, allowing direct installation and removal of Ø50.8 mm optical components from either side. When stacking multiple lens tubes, SM2-25C or SM2-12.5T accessories are required for proper connection. Each lens tube comes with two SM2R retaining rings to secure the position of optical components.
Key Features
- SM2 internal threads on both ends
- Ideal for mounting Ø50.8 mm optical elements
- SM2-xxA, SM2-25C or SM2-12.5T useable to extend lens tube length
- Includes 2 SM2R retaining rings
Application
SM2 internal threads on both ends
| Rod mounting threaded hole | SM2R/2 pcs |
| Material | 6061-T6 Aluminum Alloy |
| Applicable optical element diameter | Ø50.8 mm |
| Clear Aperture | Ø48.3 mm |
| Size | 25 mm |
| Compatibility | SM2 |
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 20 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
