Spatial Light Modulator (SLM) SLM-P2020-VIS
SLM-P2020-VISContact for pricing
In Stock· Ships in 4.0 weeks
Key Specifications
Contact Sales
Wavelength
420.0nm
Reflectance
45.0%
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

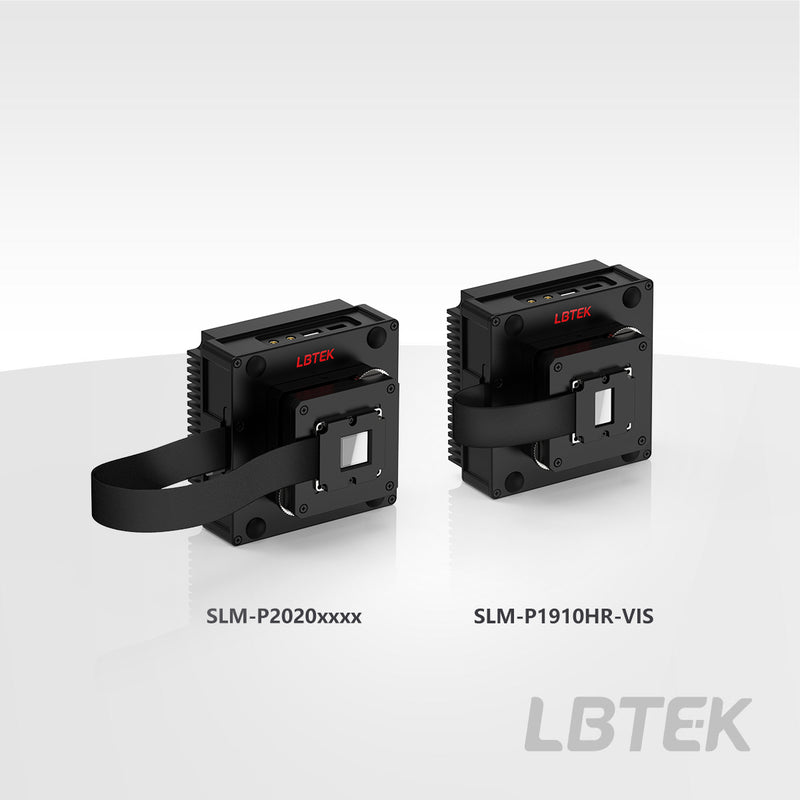

High-Resolution Reflective Phase SLM (2048×2048, LBTEK)
This LBTEK reflective-phase spatial light modulator (SLM) uses a liquid-crystal-on-silicon (LCoS) micro-display with 2048×2048 active pixels and 8 μm pixel pitch, delivering pure phase-only modulation up to 2π at the design wavelength. The high fill factor and low wavefront distortion make it suitable for demanding optical wavefront shaping applications.
Operating wavelength variants cover UV, VIS, and NIR bands. Maximum optical input power is up to 1000 W/cm² (model-dependent), enabling use in high-power femtosecond laser systems. HDMI input + external trigger I/O simplify integration with existing laser setups.
Key Features
- 2048×2048 resolution with 8 μm pixel pitch — high spatial frequency control
- Pure phase modulation, up to 2π@design wavelength
- 8-bit (256 levels) gray-scale depth
- Low wavefront distortion (≤λ/12 at 1550 nm typical)
- External trigger input/output for synchronization
- Liquid cooling option for high-power applications
- HDMI video input — plug-and-play integration
Typical Applications
- Femtosecond laser pulse shaping and compression
- Holographic optical trapping and tweezers
- Adaptive optics — aberration correction
- Beam shaping (top-hat, vortex, Bessel, structured light)
- Multi-spot laser processing / patterning
- Quantum optics experiments — phase-encoded states
- Microscopy — structured illumination, computational imaging
Product Family
The SLM-P series LBTEK reflective phase SLMs offer multi-wavelength options (VIS, IR, VISIR2, HP-IR) covering 400-1700 nm. The HP-IR variant is rated for high optical power up to 1000 W/cm² damage threshold. Custom phase masks, calibration tables, and AR coatings available on request.
SKU: SLM-P2020-VIS · Sourced from LBTEK · Distributed by WaveQuanta
| Modulation Type | Reflective Phase Modulation |
| Refresh Rate | 420 nm-700 nm |
| Resolution | 2048×2048 |
| Pixel Size | 6.4 μm |
| Display Size | 13.1 mm×13.1 mm |
| Fill Factor | 93% |
| Diffraction Efficiency | 45±5%@420 nm~700 nm |
| Phase Modulation Range | ≥2π @637 nm |
| Phase Linearity Error | ≤0.05π@637 nm |
| Refresh Rate | 60 Hz |
| Response Time | ≤40 ms@637 nm |
| Diffraction Efficiency | 60±5%@L16,637 nm |
| Damage Threshold | 20 W/cm<sup>2</sup>(No Water Cooling) </br>100 W/cm<sup>2</sup>(Water Cooling) |
| Bit Depth | 8-bit, 256 levels |
| Video Interface | HDMI |
| Power Supply | 12V 3A |
| External Trigger | Supported |
| Software Support | Supported |
| Active Cooling | Supported |
No CAD drawings available for this product.
