Spatial Light Modulator NIR-015
NIR-015Contact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
650.0nm
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

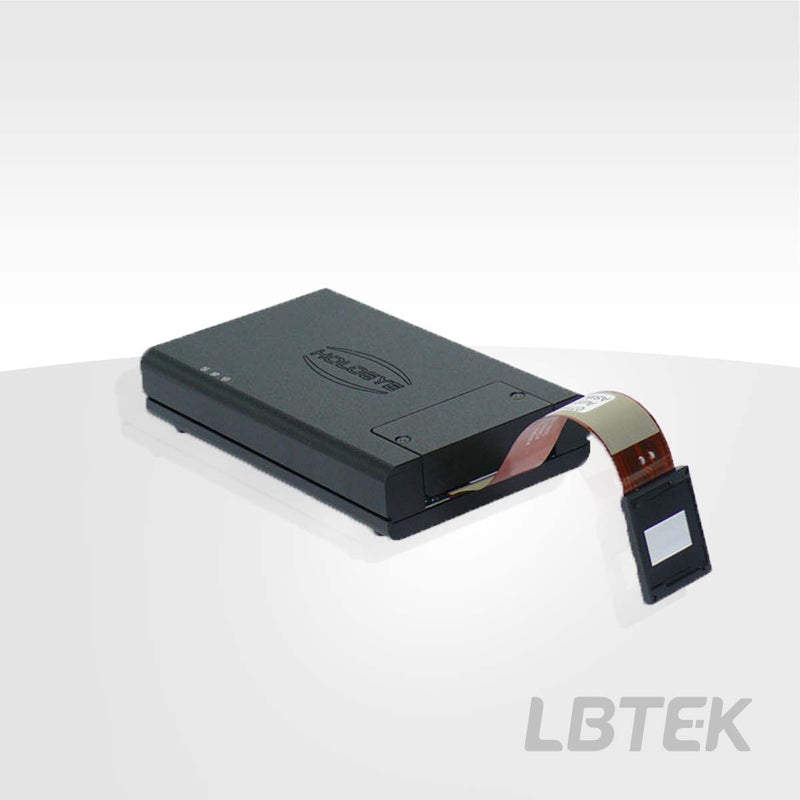

LCoS Reflective Phase Spatial Light Modulator
These liquid-crystal-on-silicon (LCoS) reflective phase spatial light modulators provide pure phase-only modulation across user-selected wavelength bands. The 1920×1080 active matrix at 8 μm pixel pitch delivers high spatial resolution for demanding wavefront shaping applications.
Multiple band-optimized variants are available — UV (350 nm), VIS (400–650 nm), NIR (700–1100 nm), telecom (1550 nm) — each tuned for peak diffraction efficiency in its operating range. HDMI video input + external trigger I/O for lab integration.
Key Features
- 1920×1080 resolution, 8 μm pixel pitch
- Reflective phase-type modulation
- 8-bit (256-level) gray-scale
- Wavelength band-optimized variants (UV / VIS / NIR / SWIR / Telecom)
- HDMI video input — standard PC-display interface
- External trigger input + output
- Compact desktop form factor
Typical Applications
- Laser beam shaping (top-hat, vortex, Bessel beams)
- Structured illumination microscopy
- Holographic optical trapping and tweezers
- Pulse shaping in ultrafast laser systems
- Adaptive optics wavefront correction
- Quantum optics — phase-encoded states
- Optical communication coherent modulation
- Computational imaging research
Product Family
The UV-099, VIS-014/016/130, NIR-015/145/149, TELCO-142, and NIRO-023 series cover all major laser bands. Custom wavelength tuning, AR coatings, and phase calibration tables available on request.
SKU: NIR-015 · Sourced from LBTEK · Distributed by WaveQuanta
| Resolution | 1920×1080 |
| Reflectance | 65%-73% |
| Active Area | 15.36 mm×8.64 mm |
| Pixel Pitch | 8 μm |
| Phase Modulation Range | 6.8π@635 nm 5.4π@800 nm 3.6π@1064 nm |
| Switching Time (Rise/Fall) | 52 ms/81 ms@635 nm 24 ms/57 ms@800 nm 43 ms/95 ms@1064 nm |
| Fill Factor | 93% |
| Bit Depth | 8 bit |
| Input Interface | HDMI – HDTV |
| Refresh Rate | 60 Hz |
| SLM Technology | LCoS (Liquid Crystal on Silicon) |
| Dimensions | 121 mm×73 mm×22 mm |
