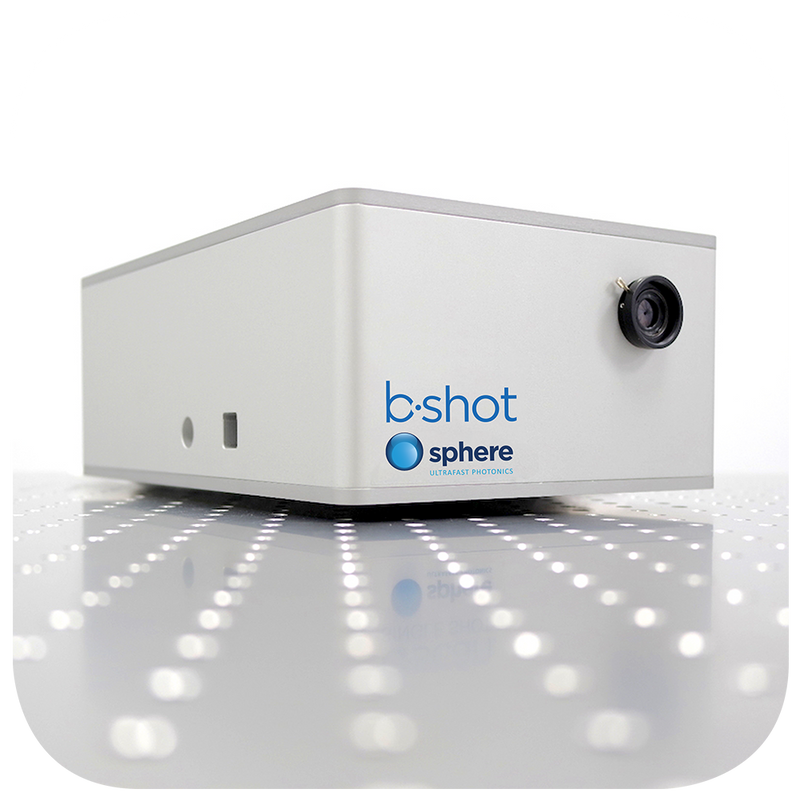

Real-time temporal measurement of your ultrafast laser system.
The b-shot is a compact, user-friendly system for measuring ultrafast laser pulses across a broad range of repetition rates — single-shot up to 100 kHz, with > 20 Hz save rate of spectral data, pulse width and electric field.
Ideal for MPC broadening / compression tuning, Ti:Sapphire amplifiers, OPCPA, and post-compressor characterization.
| Models | b-shot @ 800 nm | b-shot @ 1040 nm |
|---|---|---|
| Optimized for | Ti:Sapphire amplifier, OPCPA | MPC compressor, OPCPA |
| Central Wavelength | 800 nm | 1040 nm |
| Wavelength range | 600-1000 nm | 750-1350 nm |
| Pulse duration (FTL) (a) | 5 fs to 20 fs | 8 fs to 30 fs |
| Chirp range (b) | ±500 fs² | ±200 fs² |
| Repetition rate (c) | single shot – 100 kHz | single shot – 100 kHz |
| Save rate (spectrum, pulsewidth, E-field) | > 20 Hz | > 20 Hz |
| Input polarization | Linear-Horizontal | Linear-Horizontal |
| Input beam size | 10 mm | 10 mm |
| Input energy | 10 µJ @ 1 kHz | 10 µJ @ 1 kHz |
| Dimensions (WxLxH) | 180 × 170 × 90 mm | 180 × 170 × 90 mm |
(a) Fourier-transform limit
(b) For input pulses within wavelength range
(c) Lower repetition rates and amplified-only operation available on request
Source: Sphere Ultrafast Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
