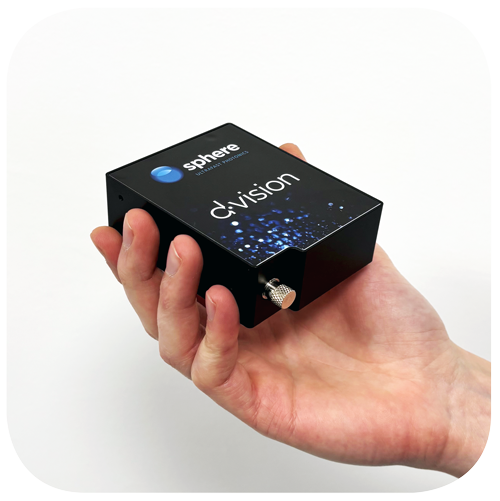

Introducing the D-Vision spectrometer — single-sensor broadband coverage from 500 nm to 1700 nm.
Experience the full spectrum with the d-vision spectrometer, your single-sensor solution for expansive VIS-SWIR analysis. Our cutting-edge technology and precision engineering allow us to offer a compact and cost-effective broadband VIS-SWIR spectrometer.
The d-vision software combines a user-friendly interface with a robust set of analysis tools — bringing simplicity and sophistication to your most ambitious spectral measurements.
| Models | d-vision |
|---|---|
| Wavelength range | 500-1700 nm (grating dependent) |
| Detector | 512 px InGaAs |
| Slit | 25 µm |
| Integration time | 10 µs – 2 s |
| A/D converter | 16-bit |
| Interface | USB Type-C 2.0 |
| Dimensions (WxLxH) | 85 × 67 × 30 mm |
Typical range selection options:
500 – 1670 nm: 1170 nm bandwidth, 3.1 nm resolution
800 – 1700 nm: 900 nm bandwidth, 2.4 nm resolution
500 – 1250 nm: 750 nm bandwidth, 2.0 nm resolution
700 – 1400 nm: 750 nm bandwidth, 2.0 nm resolution
950 – 1680 nm: 730 nm bandwidth, 2.0 nm resolution
870 – 1200 nm: 330 nm bandwidth, 1.3 nm resolution
* Talk to us for different wavelength ranges.
Source: Sphere Ultrafast Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
