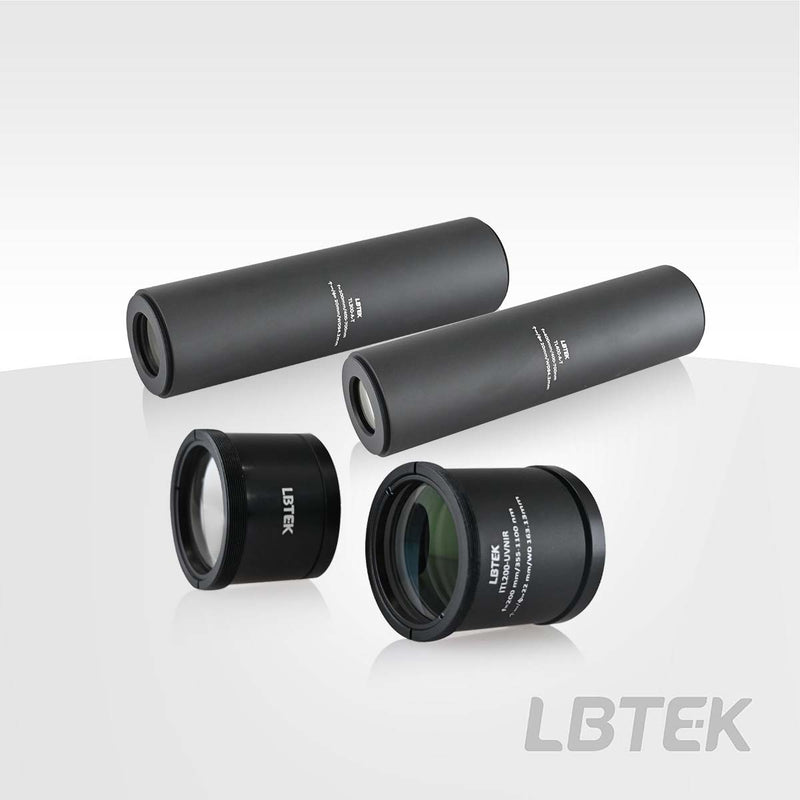

Telecentric Tube Lens TTL200MP

TTL200MP
$1,435.54
In Stock
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH
The LBTEK infinity-corrected telecentric tube lens features a telecentric design and can be paired with laser scanning lenses to form a telecentric system, making it suitable for laser scanning and wide-field imaging applications. It is designed for wavelengths of 350-1100 nm and 400-2000 nm, with broadband anti-reflection coatings for 350-1100 nm and 400-1300 nm respectively. For specific transmission rates, please refer to the transmission curve. The telecentric tube lens has M38 x 0.5 or SM2 external threads on both ends, allowing direct integration into LBTEK's 60 mm coaxial system.

Key Features

  • Telecentric design
  • Focal length: 200 mm
  • Ø22 mm and Ø24 mm imaging field of view
  • Compatible with infinity-corrected objectives from major manufacturers

Application

Assembly Diagram

Design Wavelength 400-2000 nm
Coating R<sub>avg</sub>< 1.5% ，@400-1300 nm
Focal length 200 mm±1%
Working distance 152.9 mm<sup>a</sup>
Length 229.1 mm<sup>b</sup> (telecentric)
Image plane size Ø22 mm
Total Track Length 420 mm
Entrance Pupil Diameter Ø20 mm
Diaphragm Type Apochromatic
Length 10
Image Sensor Format 37.4 mm
TV Distortion ＜0.2%
Compatibility SM2 external thread
Tube Length 44.1 mm
Surface Quality (Scratch/Dig) 40/20
