ICTL200-A2-W
LBTek

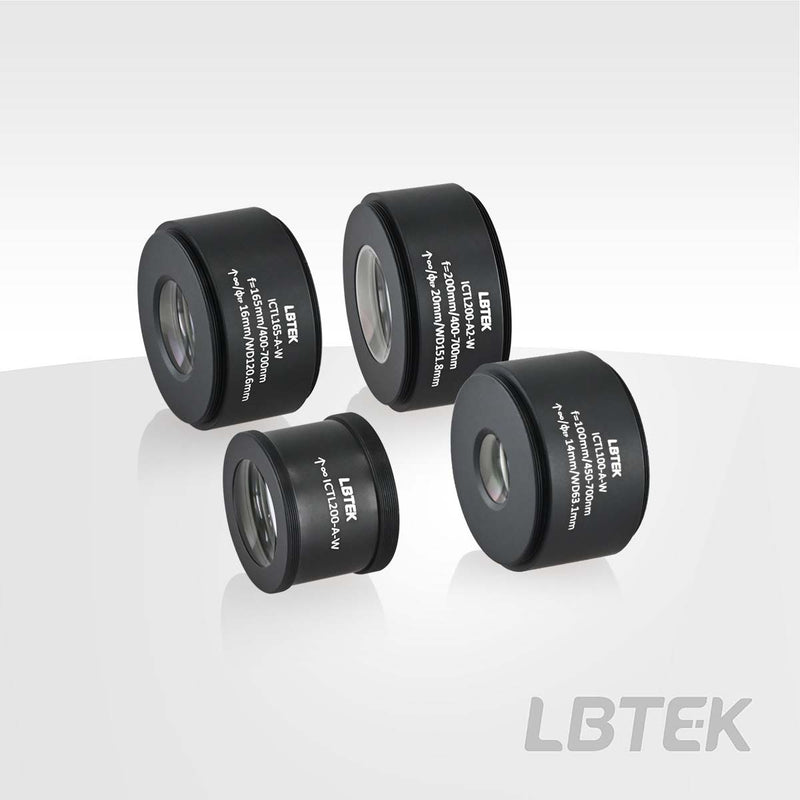

Tube lens ICTL200-A2-W

ICTL200-A2-W
$490.28
In Stock
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH
The LBTEK infinite correction tube lens is designed to be used in conjunction with infinity-corrected objectives to construct an infinity-corrected optical system. To minimize losses caused by surface reflections, all lens surfaces in the infinite correction tube lens are coated with broadband anti-reflection coatings. The coating wavelength ranges are: 400-750 nm, 700-1100 nm. The infinite correction tube lens delivers diffraction-limited optical performance within the working wavelength range. During use, the M38×0.5 or SM2 threaded end should face the objective.

Key Features

  • Focal length: 200 mm
  • Ø22 mm imaging field of view
  • Compatible with infinity-corrected objectives from major manufacturers

Application

Assembly Diagram

No specifications available for this product.

No documents available for this product.
No CAD drawings available for this product.
