Tube lens ICTL165-A-W

ICTL165-A-W
$754.38
In Stock
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

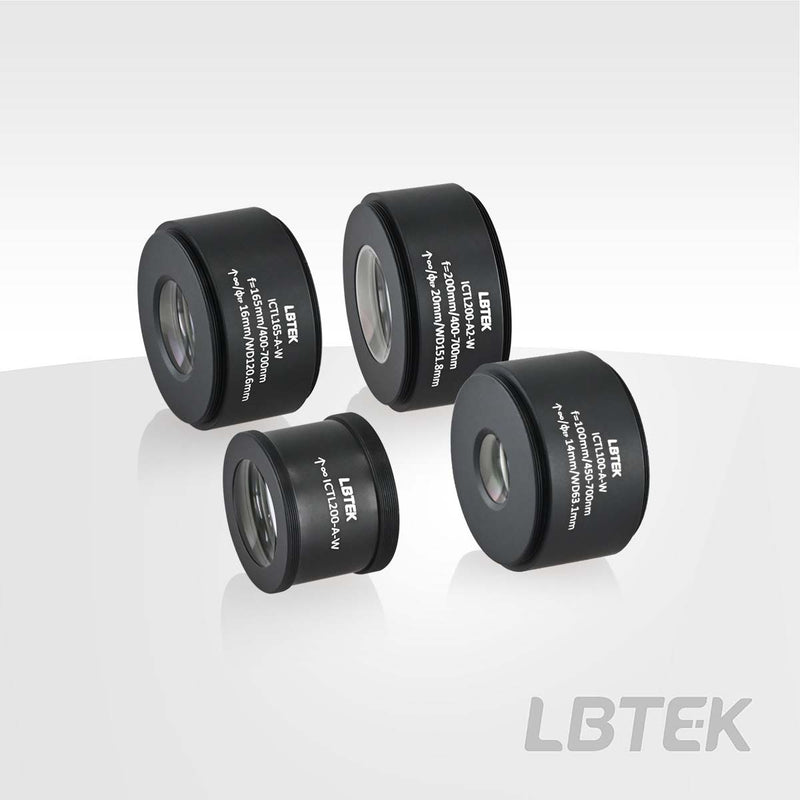

The LBTEK infinite correction tube lens is designed to be used in conjunction with infinity-corrected objectives to construct an infinity-corrected optical system. To minimize losses caused by surface reflections, all lens surfaces in the infinite correction tube lens are coated with broadband anti-reflection coatings. The coating wavelength ranges are: 400-750 nm, 700-1100 nm. The infinite correction tube lens delivers diffraction-limited optical performance within the working wavelength range. During use, the M38×0.5 or SM2 threaded end should face the objective.

Key Features

  • Focal length: 200 mm
  • Ø22 mm imaging field of view
  • Compatible with infinity-corrected objectives from major manufacturers

Application

Assembly Diagram

Operating Wavelength 400-700 nm
Focal length 165 mm±1%
Working distance 120.6 mm<sup>a</sup>
Coating R<sub>avg</sub> < 0.5% ，@350-750 nm
Surface Quality (Scratch/Dig) 40/20
Compatibility SM2 External Thread
Tube Length 30.9 mm
Resolution Diffraction limit<sup>b</sup>
Image plane size Ø22 mm
Length 50-150 mm<sup>c</sup>
Entrance Pupil Diameter Ø16 mm
