Translating Rectangular Filter Holders MS-50X

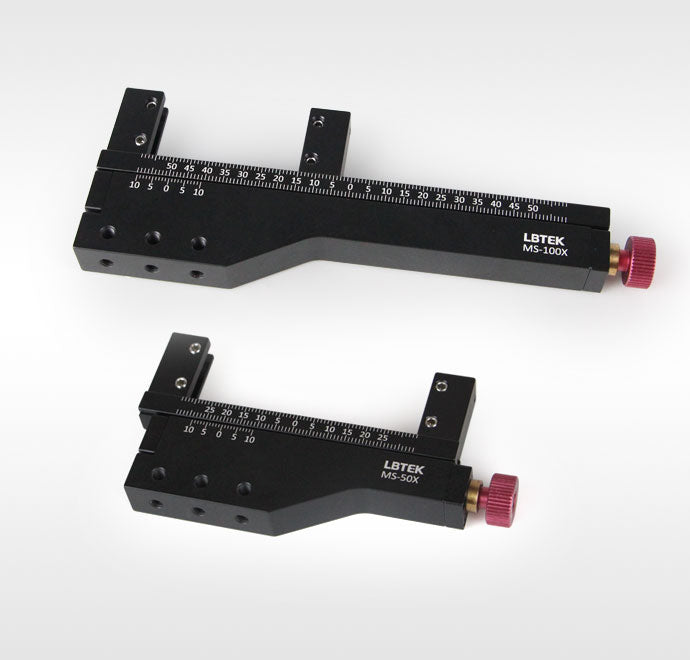

The One-Axis Translation Mounts MS-50X and MS-100X provided by LBTEK can accommodate rectangular plate optical components with widths ranging from 12.5 mm to 77 mm and 12.5 mm to 127 mm, respectively, and a maximum thickness of 4 mm. The optical components are mounted using two clamping arms, each equipped with two rubber-tipped screws. The clamping arms can slide within the channel to accommodate optical components of different sizes. The mount driver offers manual adjustment within a 50 mm/100 mm travel range, and the translation axis features a vernier scale with a resolution of 100 μm, allowing for repeatable positioning of optical components. Both the clamping arms and the driver can be locked using a 2 mm hex wrench. The mount includes seven M4 threaded holes, enabling setup from three different orientations. By loosening the top fixing screw, the clamping arms can be removed from the channel and interchanged. This mount is ideal for general one-axis translation applications and self-built microscope systems, as well as LBTEK rectangular test targets, filters, mirrors, windows, and other optical components. Note: When mounting optical components in the clamping arms, approximately 4.5 mm at each end will be obscured.
