Translating Rectangular Filter Holders MS-XY

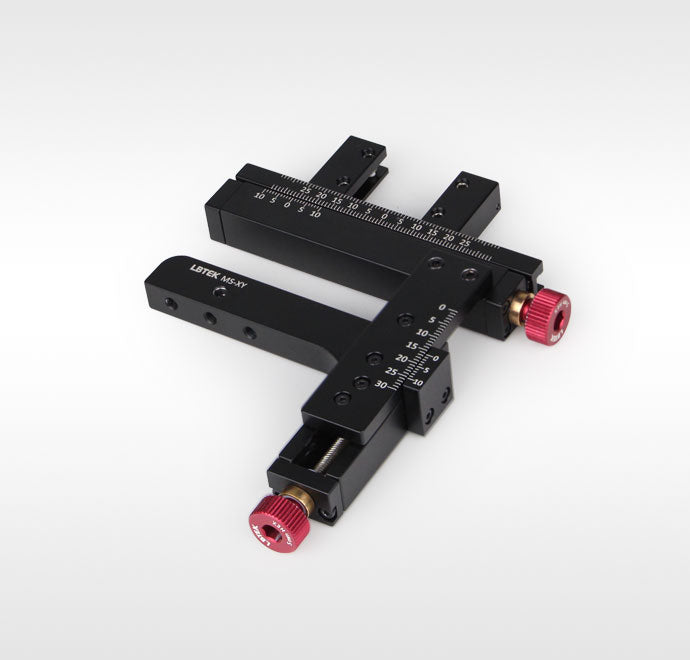

The MS-XY XY Translation Mounts provided by LBTEK can mount rectangular plate optical components with widths ranging from 12.5 mm to 77 mm and a maximum thickness of 4 mm. The optical component is secured by two clamping arms, each equipped with two rubber-tipped screws. The clamping arms can slide within the channels to accommodate optical components of different sizes. The mount features two drivers, enabling manual adjustment within a travel range of 50 mm on the X-axis and 30 mm on the Y-axis. Both translation axes are equipped with vernier scales with a resolution of 100 μm, allowing for repeatable positioning of optical components. The clamping arms and drivers can be locked using a 2 mm hex key. The mount includes five M4 threaded holes, one of which is a through-hole that allows setup from both front and back positions, providing a total of six different mounting options. By loosening the top screw, the clamping arms can be removed from the channels and interchanged. This mount is ideal for general XY translation applications and self-assembled microscope systems, as well as LBTEK rectangular test targets, filters, mirrors, windows, and other optical components. Note: When the optical component is mounted in the clamping arms, approximately 4.5 mm at each end will be obscured.
