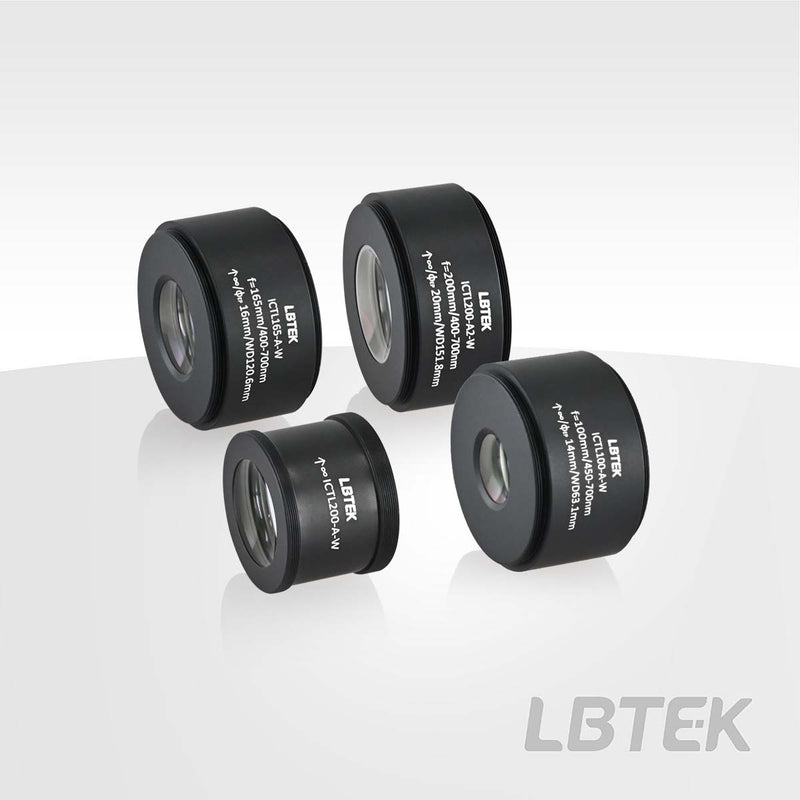

Tube lens ICTL140-A-W-SP
ICTL140-A-W-SP$1,716.91
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The LBTEK infinite correction tube lens is designed to be used in conjunction with infinity-corrected objectives to construct an infinity-corrected optical system. To minimize losses caused by surface reflections, all lens surfaces in the infinite correction tube lens are coated with broadband anti-reflection coatings. The coating wavelength ranges are: 400-750 nm, 700-1100 nm. The infinite correction tube lens delivers diffraction-limited optical performance within the working wavelength range. During use, the M38×0.5 or SM2 threaded end should face the objective.
Key Features
- Focal length: 200 mm
- Ø22 mm imaging field of view
- Compatible with infinity-corrected objectives from major manufacturers
Application
Assembly Diagram
| Operating Wavelength | 400-700 nm |
| Focal length | 140 mm±1% |
| Working distance | 96.1 mm<sup>a</sup> |
| Coating | R<sub>avg</sub> < 0.5% ，@350-750 nm |
| Surface Quality (Scratch/Dig) | 40/20 |
| Compatibility | SM2 External Thread |
| Tube Length | 33.0 mm |
| Resolution | Diffraction limit<sup>b</sup> |
| Image plane size | Ø22 mm |
| Length | 0-85 mm<sup>c</sup> |
| Entrance Pupil Diameter | Ø18 mm |
