Vertical Adjustment Flexure Mount (Industrial Grade) VAM-1AF

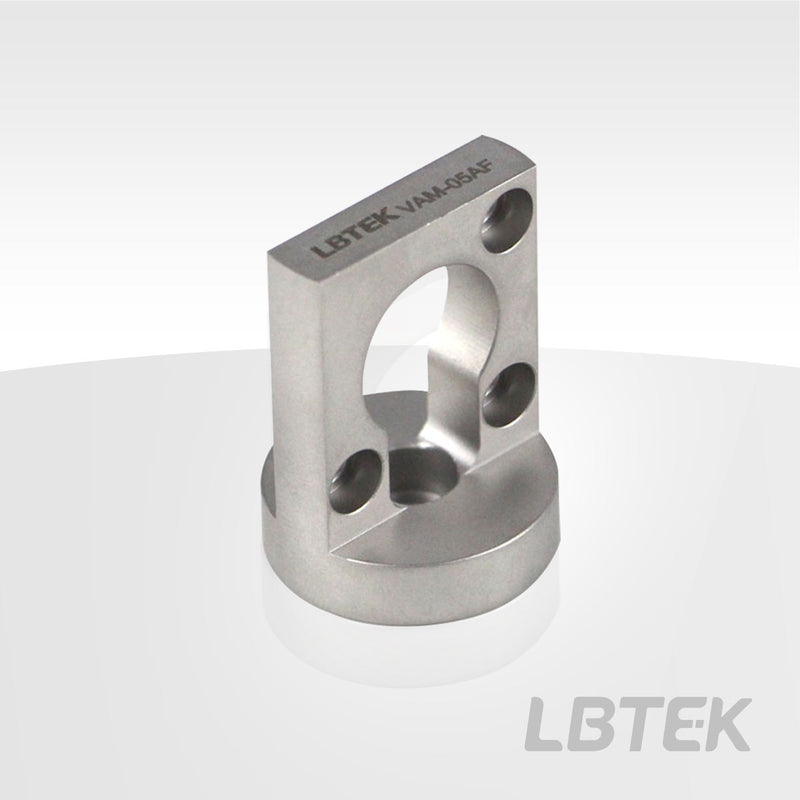

LBTEK Vertical Adjustment Flexure Mount Adapter, designed for mounting 1-inch industrial-grade vertical adjustment flexure mount VAM-1AS, VAM-05AS, VAM-1AS-SP1/SP2 onto optical posts or platform. The VAM-1AF features 3 M3 countersunk holes on the front for securing the VAM-1AS, and includes 2 M3 countersunk holes, 1 M4 countersunk hole, and 1 M6 mounting slot on the base, providing multiple mounting options. The purchase includes 3 M3×6, 1 M4×8, and 1 M6×16 socket head cap screws. The VAM-05AF has 3 M3 countersunk holes on the front for locking the VAM-05AS, and comes with 1 M4 countersunk mounting hole on the base. The purchase includes 1 M4 socket head cap screw. The VAM-1AF-SP is equipped with 4 M3 countersunk holes on the front for securing either VAM-1AS-SP1 or VAM-1AS-SP2. Its two Ø14 mm slot holes are designed to avoid interference with the large-angle beam-splitting reflector mount's dual 45° input/output light paths. The base includes 1 M4 threaded mounting hole, and the purchase comes with 1 M4 set screw.
