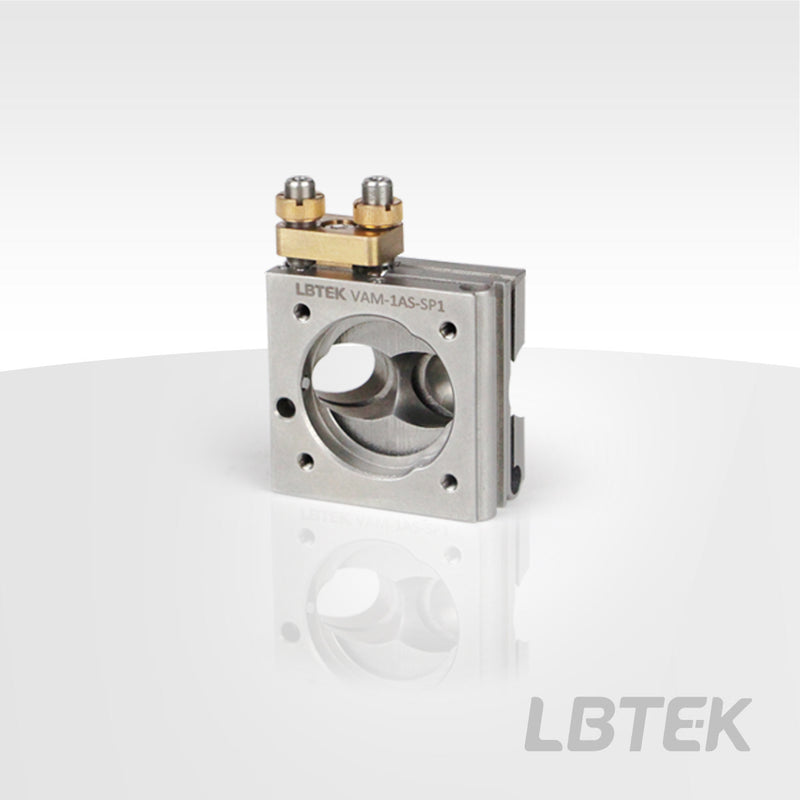

Vertical Adjustment Flexure Mount (Industrial Grade) VAM-1AS-SP1

LBTEK Flexible Vertical Adjustment, Large-Angle Beam-Splitting Mounts are designed for mounting optical components with Ø25.4 mm diameter and minimum thickness of 2.5 mm. The optical component is secured by rubber-tipped set screws, featuring two 45° inclined light input/output holes with Ø12.7 mm aperture. The adjustment range is 5°, with adjustment precision of 0.18°/rotation for both pitch and yaw. Equipped with 2 M5×0.2 high-sensitivity adjusters with locknuts, adjustable using the included 2.0 mm hex key. Both front and back sides of the mount have mounting holes: VAM-1AS-SP1 has 8 M3 threaded holes on both front and back, while VAM-1AS-SP2 has 4 M2.5 threaded holes on the front and 4 M3 threaded holes on the back. Purchasing the LBTEK Flexible Vertical Adjustment Mount includes 1 free 2.0 mm hex key. LBTEK also offers various customization services, including different mounting options. For specific customization requirements, please contact LBTEK Technical Support. (Note: The drive mechanism of VAM-1AS-SP2 is made of stainless steel, which may result in variations in screwing feel.)
