Vertical Adjustment Mirror Mounts (Industrial Grade) — Model VAM-30F

✔ In Stock — Ships Today

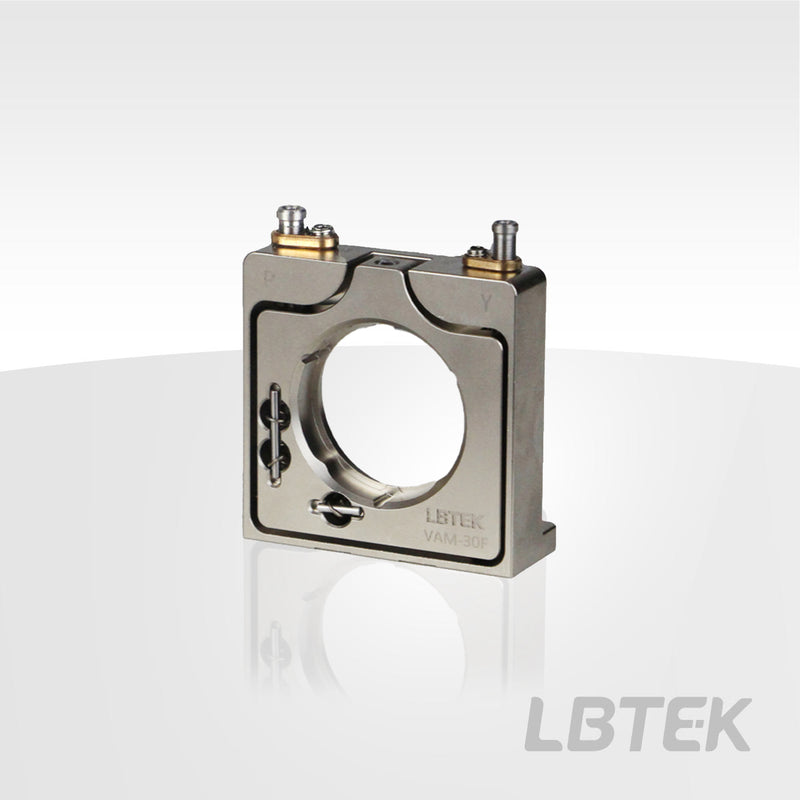

LBTEK Ø30 mm Stainless Steel Vertical Adjustment Mirror Mount (Industrial Grade), with a main body made of stainless steel, features a stable and compact design. It can accommodate optical elements with a minimum thickness of 3 mm and a diameter of 30 mm, secured by rubber-tipped screws. The adjustment range is ±2.5°, with adjustment precision for pitch/yaw at 0.3°/rotation and 0.21°/rotation, respectively. It includes 2 M4×0.25 threaded pairs with locking copper plates, adjustable using the included HWS-2 knurled 2 mm hex key or a standard 2 mm hex key. Both adjusters are marked with their motion axes: P for pitch and Y for yaw. The base is equipped with 3 Ø4.4 mm through-holes, allowing the mount to be mounted on posts using the included M4 socket head cap screws. Additionally, the back of the base features extra Ø2 mm location pin holes for securing the position.

Key Features

  • For optical components with a diameter of 30 mm and minimum thickness of 3 mm, secured by rubber-tipped set screws
  • Adjustable angle ±2.5°, adjustment precision for pitch/yaw: 0.3°/rotation and 0.21°/rotation respectively
  • Lever lock providing long-term stability

Application

Mounting the VAM-30F with a Ø12.7 mm post and a post holder

No specifications available for this product.

Product Family: Vertical Adjustment Mirror Mounts (Industrial Grade) (7 variants)
