XY-Axis Translation Stage XYTP-1A

Name: XY-Axis Translation Stage XYTP-1A
Brand: LBTek
SKU: XYTP-1A
Price: 556.04 SGD
Availability: InStock

XYTP-1A

$556.04

In Stock

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement

RoHS REACH

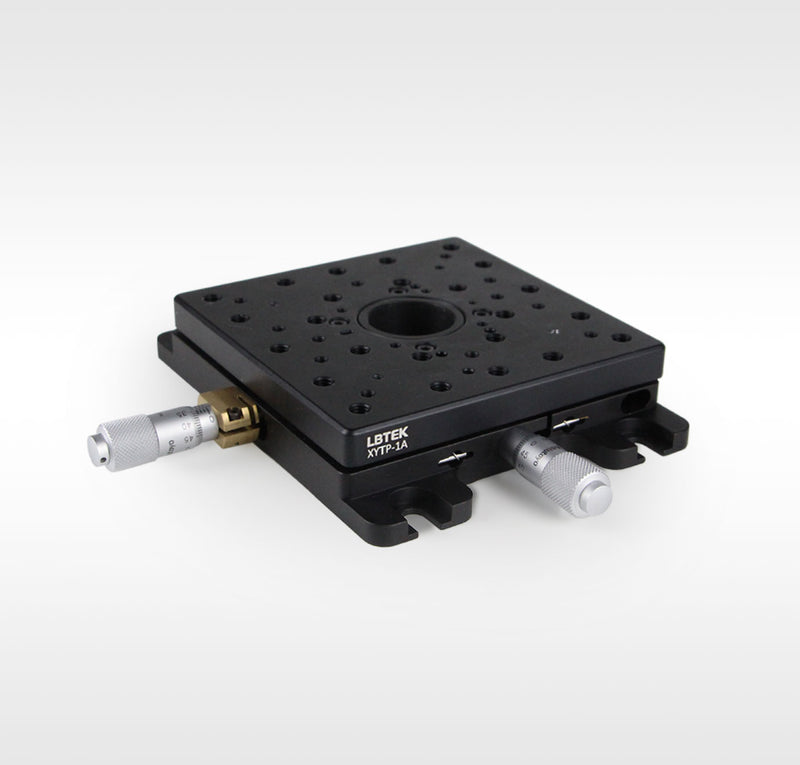

The XY translation stage from LBTEK features a low profile design with micrometer drives offering 13 mm travel and 10 μm minimum graduation. The stage center includes an SM1 tapped hole for mounting optical components up to 25.4 mm in diameter and 15 mm thick, ideal for bottom-illuminated imaging systems. Both X and Y-axis movements maintain unobstructed SM1 optical path alignment. The integrated mounting plate contains multiple tapped holes (M3/M4/M6) for stage fixation and accessory mounting, with center-positioned M3 tapped holes supporting 30 mm/60 mm coaxial systems. Peripheral M4 tapped holes with location pin accommodate microscope slide spring clips.

Key Features

XY dual-axis translation stage;
Fixed mounting stage;
Stage center with SM1 tapped hole;
Microscope slide spring clips can be mounted;

Application

XYRP-1A with microscope slide spring clip.

No specifications available for this product.

No documents available for this product.

No CAD drawings available for this product.

Product Family: XY-Axis Translation Stage (4 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
XY-Axis Translation Stage XYTP-1A Current	`XYTP-1A`	—	—	—
XY-Axis Translation Stage with Rotary Stage XYRP-1A	`XYRP-1A`	—	—	—	View
XY-Axis Translation Stage XYRP-1A	`XYRP-1A`	—	—	—	View
XY-Axis Translation Stage XYTP-1A	`XYTP-1A`	—	—	—	View
