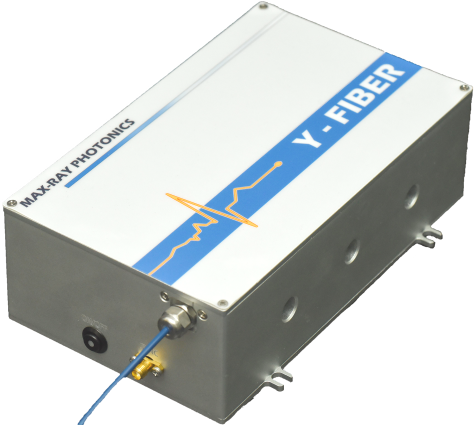

1030/1064nm Picosecond Pulse Fiber Laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Y-Fiber series of ultrafast lasers utilize high-performance rare-earth fibers as the operating medium, integrated with fully polarization-maintaining mode-locking technology and an active servo control system, to achieve stable output of picosecond pulsed lasers at the 1030/1064nm wavelength bands. They are fully self-starting and capable of long-term stable operation, characterized by narrow laser pulse widths and high pulse peak optical power. This light source can be utilized for scientific research in the fields such as high-power lasers, supercontinuum generation, laser ranging, and beyond. Customization of parameters including pulse width, power, repetition rate, and more is available upon request.
Features & Applications
- Ultrashort Pulse
- Pump Laser
- Robust and reliable
- Supercontinuum Generation
- Compact and turnkey
- Seed Laser
| Models | Configuration Options |
|---|---|
| Wavelength (nm) | 1030/1064 |
| Pulse Duration (ps) | 10/20/50/100 |
| Power (mW) | 10/50/200/ 2000 |
| Repetition Rate(MHz) | 15/50/100 |
| Output Form | SM PM FS=Free Space |
| Packaging | B= Benchtop M= Module |
Build code per Ordering Information; parameters customizable on request.
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
Product Family: Picosecond Fiber Lasers (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 515/532nm Picosecond Pulse Fiber Laser |
| — | — | — | Contact |
| 1560nm Picosecond Pulse Fiber Laser |
| — | — | — | Contact |
| 1030/1064nm Picosecond Pulse Fiber Laser Current |
| — | — | — |
