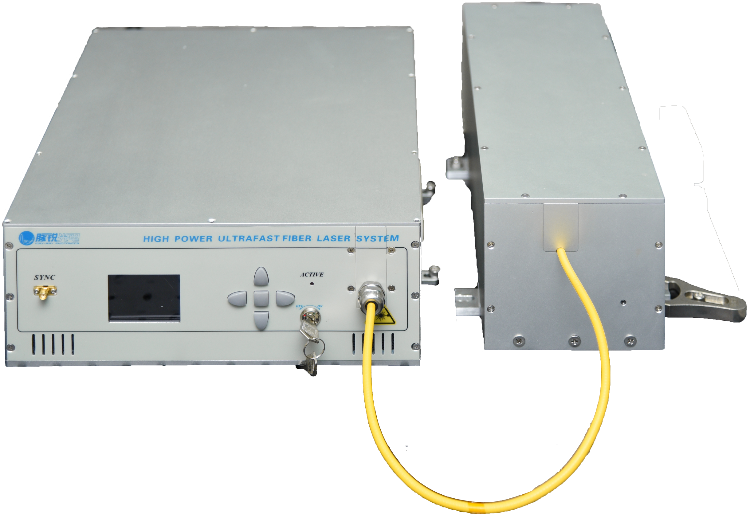

515/532nm Picosecond Pulse Fiber Laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Y-Fiber series ultrafast lasers utilize high-performance rare-earth fibers as the working medium, combined with all-polarization-maintaining mode-locking and frequency doubling technologies, to achieve stable output of picosecond pulsed lasers in the 515/532nm wavelength range. They are capable of fully self-starting and maintaining long-term stable operation, featuring narrow laser pulses and high peak optical power. These lasers are suitable for scientific research in fields such as fluorescence lifetime microscopy imaging and nonlinear optics. Customization of parameters such as Pulse Duration, Power, and Repetition Rate is available.
Features & Applications
- Fully polarizatiomaintaining
- FLIM
- Robust and reliable
- Pump laser for OPA
- GreePicosecond
- Seed Laser
| Models | Specification |
|---|---|
| Center Wavelength (nm) | 515/ 532 |
| Optical Spectrum width (nm) | 0.3 |
| Pulse Duration (ps) | 10/20/50/100 |
| Output Power (mW) | 1~200 |
| Power Instability | < ± 2 % |
| Repetition Rate (MHz) | 15~100 |
| Pulse Energy (nJ) | >0.5 |
| Stabilization Time (s) | <20 |
| P olarization | Linear Polarization |
| Output Form | Free Space |
| Warm Time (min) | < 1 |
Center Wavelength: Customizable
Optical Spectrum width: Customizable
Pulse Duration: Customizable
Output Power: Customizable
Power Instability: 25℃， open after 5minutes
Repetition Rate: Customizable
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
