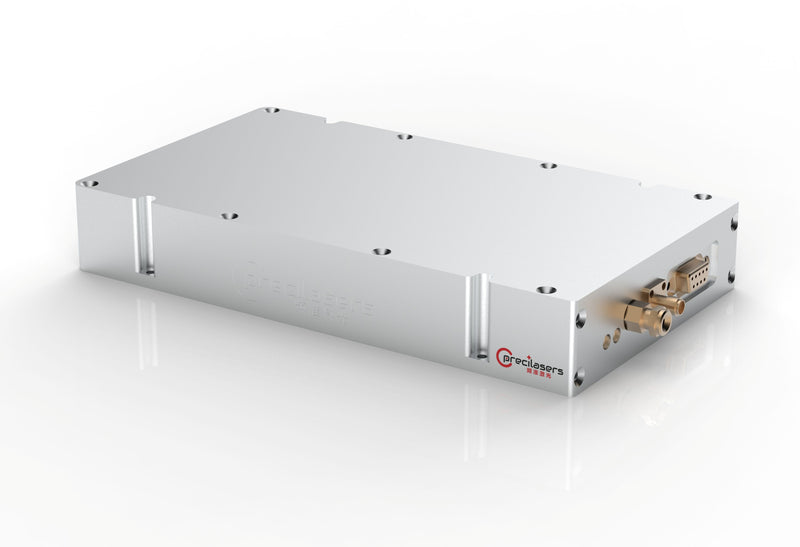

1530-1590nm Femtosecond laser The Erbium-doped femtosecond seed laser is engineered for robustness and stability in demanding environments. Key Specifications Core Technology: Utilizes Nonlinear Amplifying Loop Mirror (NALM) technology. Stability: Achieves long-term, high-stability pulsed output. Environmental Tolerance: Suitable for operation in both high and low-temperature environments.
Features
- Broad Spectrum High Power
- Linear Polarization Customizable Wavelength
- High Power Stability
Applications
- Atomic and Molecular Photophysics
- Precision Measurement Ultrafast Imaging
- Precision Machining
| Models | Specification |
|---|---|
| Customizable Central Wavelength | 1530-1590 nm |
| Pulse Width | Compressible to <100 fs |
| Pulse Energy | 0.5-3 nJ |
| Average Power | 6-200 mW |
| Maximum Peak Power | >20 kW |
| Spectral Width | >15 nm |
| Repetition Rate | 50-140 MHz selectable |
| Operating Mode | Pulsed |
| Temperature(No condensation conditions) | 15-35 °C |
| Power Supply | 12V, DC / 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
| Chassis Dimensions | 225mm×120mm×40mm(<10mW) / 483mm×367.5mm×50mm(>10mW) |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
