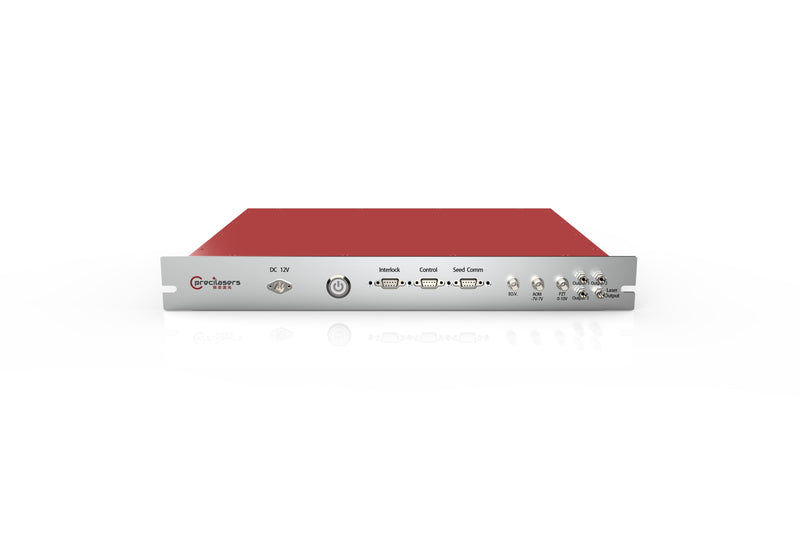

1800-2130nm Broadband tunable femtosecond laser
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS
REACH
1.5 µm Low Phase Noise Femtosecond Laser Femtosecond laser -->
Features
- Narrow Pulse Width Broad
- Spectrum Linear Polarization Wavelength
- Tunable High Power Stability
Applications
- Atomic and Molecular Photonics
- Precision Measurement Ultrafast Imaging
- Nonlinear Optics
- Frontier Sciences Biomedicine High
- Manufacturing
| Models | Specification |
|---|---|
| Model Number | FL-FS-XXXX-YY |
| Optional Central Wavelength Range | 1800-2130 nm |
| Pulse Width | <500 fs (Customizable picosecond-level pulse width) |
| Pulse Energy | 0.6-1.2 nJ |
| Average Power | >20mW |
| Peak Power | >800W |
| Spectral Width | 15-25 nm |
| Repetition Rate | 50-150 MHz (Optional Frequency Reduction Module) |
| Polarization | Linear Polarization, >100:1 |
| Power Stability | <0.5% @12hours, RMS |
| Beam Quality | M²<1.1 |
| Operating Mode | FC/APC output |
| Cooling | Air Cooling |
| Temperature(No condensation conditions) | 15-35 °C |
| Power Supply | DC 12V |
| Communication | RS422 |
| Chassis Dimensions | 483mm×350mm×56 mm |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
Product Family: Femtosecond Lasers (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 780nm Femtosecond laser |
| — | — | — | Contact |
| 1560-1590nm Femtosecond laser |
| — | — | — | Contact |
| 1.5 µm Narrow-Spectrum Femtosecond Laser |
| — | — | — | Contact |
| 1.5 µm Low Phase Noise Femtosecond Laser |
| — | — | — | Contact |
| 1800-2130nm Broadband tunable femtosecond laser Current |
| — | — | — | |
| 1530-1590nm Femtosecond laser |
| — | — | — | Contact |
| 1030-1110nm Femtosecond laser |
| — | — | — | Contact |
