Precilasers
780nm Femtosecond laser
Contact for pricing
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
RoHS
REACH

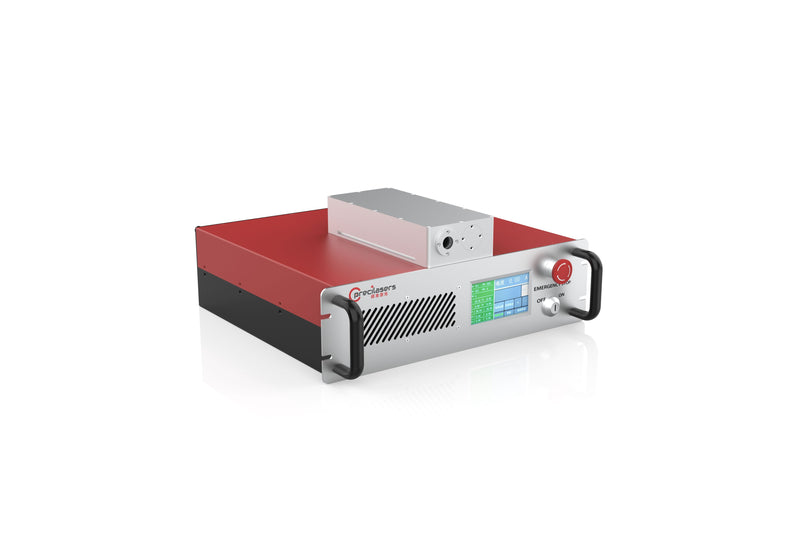

780nm Femtosecond laser Precilasers offers ultra stable femotosecond fiber laser with narrow pulse width / large spectral width / high repetition rate and high coherent laser pulse output.It also has features of stable / long life and excellent beam quality(single mode output),can meet the strict requirement of optical frequency comb and other cutting edge applications.
Features
- Narrow pulse width
- Robust Good Beam Quality
- Linear Polarization High Power
- Stability
Applications
- Quantum Information Ultr Fast
- Imaging Precision Measurement Optical
- Frequency Comb
| Models | FL-FS-780-0.1 |
|---|---|
| Center Wavelength | 780nm |
| Operational Mode | pulse |
| Pulse Width | <200fs |
| Pulse Energy | 0.1-10nJ |
| Average Power | >100mW / >300mW / >1W |
| Max. Peak Power | ≤50kW |
| Repetition Rate | 40MHz-140MHz |
| Polarization | linear, > 20dB |
| Power Stability | <1% @3hours, RMS |
| Beam Quality | TEM00, M²<1.1 |
| Output Mode | Free space collimated output |
| Cooling | Air cooling |
| Cold Start | <2 hours |
| Warm Start | <30 minutes |
| Controller Size | ≤483mm x 420mm x 133mm |
| Laser Head Size | ≤90mm x 358mm x 68mm |
| Laser Head Weight | ≤20kg |
| Laser Controller Weight | ≤20kg |
| Cable Length Between Laser Head And Controller | >1.5m |
| Operating Temperature (No condensing) | 15-30 °C (Air cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Power Consumption | <240W / <240W / <240W / <240W |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
