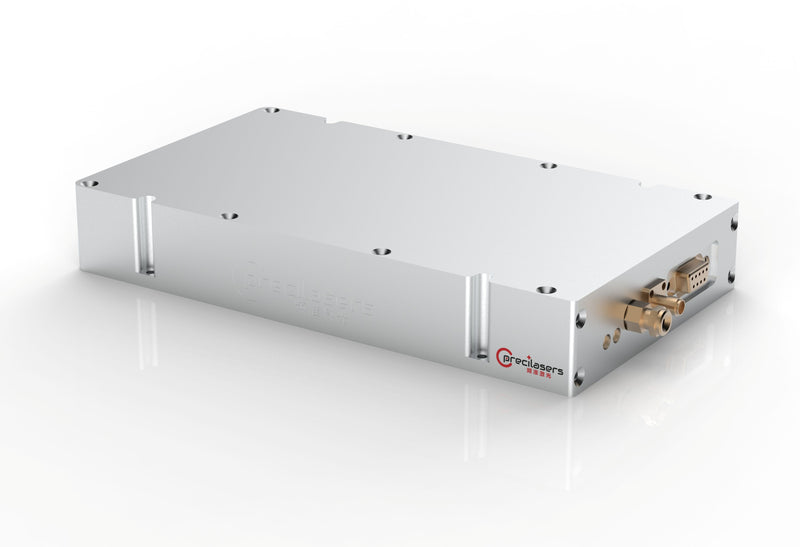

1560-1590nm Femtosecond laser Precilasers offers ultra stable femotosecond fiber laser with narrow pulse width / large spectral width / high repetition rate and high coherent laser pulse output.It also has features of stable / long life and excellent beam quality(single mode output),can meet the strict requirement of optical frequency comb and other cutting edge applications.
Features
- Narrow Pulse Width
- Large Spectral Width Robust
- Good Beam Quality Linear
- Polarization High Power Stability
Applications
- Quantum Information Ultr Fast
- Imaging Precision Measurement Optical
- Frequency Comb
| Models | FL-FS-1560-S |
|---|---|
| Center Wavelength | 1560±20nm |
| Spectral Width | 20nm-80nm / 20nm-80nm / 20nm |
| Operational Mode | pulse |
| Pulse Width | <100fs / <100fs / <200fs |
| Pulse Energy | >0.05nJ / >0.5nJ / >30nJ |
| Average Power | >6mW / 60mW-200mW / 3W-5W |
| Max. Peak Power | >500W / >5kW / >150kW |
| Repetition Rate | 40MHz-140MHz |
| Polarization | linear, > 20dB |
| Power Stability | <1% @3hours, RMS |
| Beam Quality | TEM00, M²<1.1 |
| Output Mode | Fiber Jumper / Fiber Jumper / Collimated output |
| Cooling | Air cooling |
| Cold Start | <2 hours |
| Warm Start | <30 minutes |
| Laser Size | ≤225mm x 120mm x 40mm / ≤483mm x 420mm x 133mm |
| Laser Weight | ≤2kg / ≤2kg / ≤20kg |
| Operating Temperature (No condensing) | 15-30 °C (Air cooling) |
| Power Supply | 12VDC/5A / 12VDC/5A / 100V-240V, AC, 50/60Hz |
| Power Consumption | <240W |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
