1544nm Frequency stabilized laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

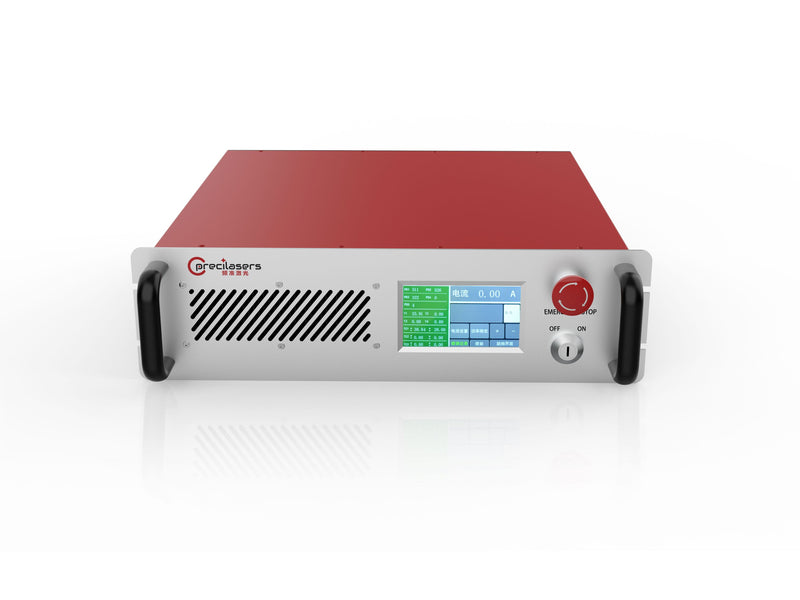

1544nm Frequency stabilized laser Based on Precilasers' narrow-linewidth 1544nm laser and all-fiber acetylene frequency-stabilized module, the 1544nm frequency-stabilized laser can output narrow-linewidth laser output with good long-term stability, which can be applied to fields such as industrial precision measurement.
Features
- Narrow Linewidth Linear Polarization
- High Power Active Power
- Stabilization Excellent Beam Quality
- Never Mode
- Resistant to high and
| Models | FL-SF-1544-XX (1) -SAS |
|---|---|
| Center Wavelength | 1544nm (2) |
| Output Power | >10mW / >100mW |
| Linewidth (100us integral) (3) | <2kHz |
| Frequency Stability | Acetylene frequency stabilization, <2MHz@10hrs |
| Long Term Power Stability | <0.75% @3hrs, RMS |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Output Mode | Single-mode polarization-maintaining fiber output, FC/APC connector |
| Beam Quality | M2<1.1 |
| Polarization Extinction Ratio | >20dB,Linear polarization |
| Cooling | Air Cooling |
| Temperature | 15-30°C(No condensation conditions) |
| Power Supply | 100-240v, AC, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
