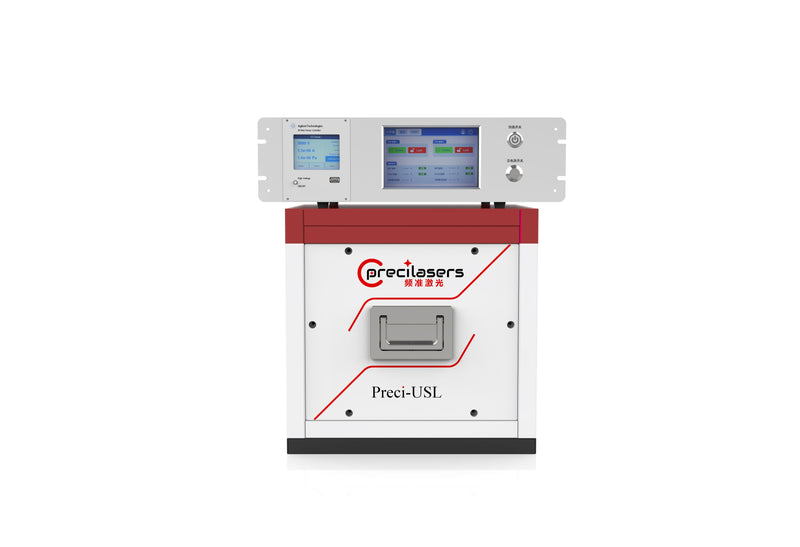

Ultra-stable laser system Preci-USL-5cm
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Ultra-stable laser system Preci-USL-5cm Based on a 5cm high-finesse F-P cavity, Precilasers provides an ultra-stable narrow-linewidth laser system with stability approaching the thermal noise limit. It supports dual-wavelength locking, covering a wavelength range of 400nm-2000nm, with a typical linewidth of <1Hz.
Features
- Dual
- Vibration insensitivity One
- Automatic re
- Support for built
- Optional active vibration isolation
- Optional sideband frequency shifting
Applications
- Atomic clocks Quantum precision
- Fiber optic frequency distribution
- Gravitational wave detection
| Models | Preci-USL-5cm |
|---|---|
| Optional Wavelengths | 400-2000nm |
| Typical Wavelength | 480nm, 580nm, 780nm, 852nm, 1080nm, 1560nm, 1762nm |
| Features & Advantages | Dual-axis, narrow linewidth, high stability |
| Linewidth* | <1Hz |
| Stability** | <3×10 -15 @1s |
| Active Vibration Isolation Table | Optional |
| Cavity Length | 5cm |
| Free Spectral Range | 3GHz |
| Finesse | 1000, 10000, 200000 |
| Drift | <0.2Hz/s (<20kHz/day) |
| Vacuum Degree | <1×10 -7 mbar |
| Cavity Mirror Parameters | ULE material, plane-concave cavity; concave mirror curvature radius optional (500mm/1000mm/2000mm) |
| Operating Temperature | 20±7°C |
| Ambient Temperature Sensitivity | <3mK/°C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Weight | 70kg |
| Dimensions | 40cm×39cm×45cm |
| Multi-Wavelength | Dual-wavelength optional |
| Active Vibration Isolation | Optional active vibration isolation table |
| Sideband Locking Option | Integratable sideband frequency shifting EOM (bandwidth >1.5GHz) |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
