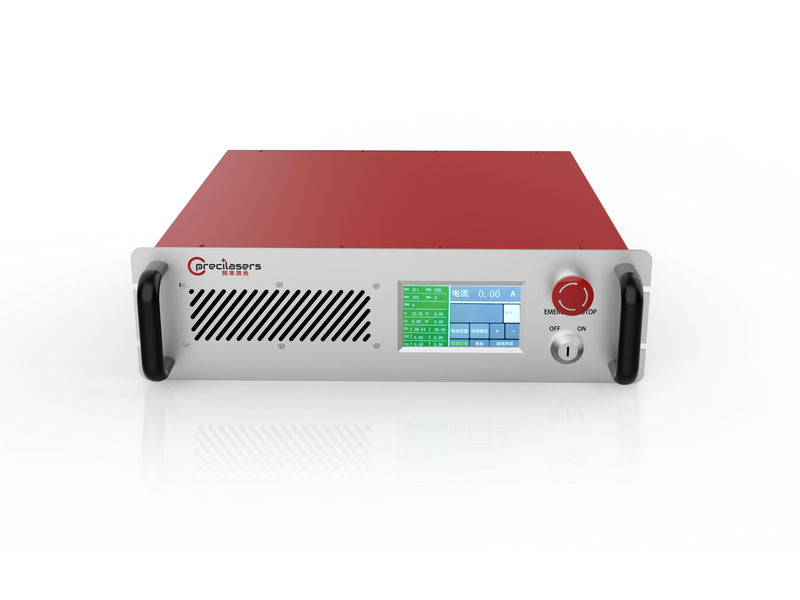

532nm Frequency stabilized laser Based on Precilasers' narrow-linewidth 532nm laser and all-fiber iodine frequency-stabilized module, the 532nm frequency-stabilized laser can output narrow-linewidth laser output with good long-term stability, which can be applied to fields such as industrial precision measurement.
Features
- Narrow Linewidth Linear Polarization
- High Power Active Power
- Stabilization Excellent Beam Quality
- Never Mode
- Resistant to high and
| Models | FL-SF-X-Y (1) -MTS |
|---|---|
| Center Wavelength | 532nm (2) |
| Output Power | >10mW / >100mW |
| Linewidth (100 us integration)(3) | <20kHz |
| Frequency Stability | Iodine molecule frequency stabilization, 10ppb@1hrs, <1ppb@30s |
| Long Term Power Stability | <0.75% @3hrs, RMS |
| Output Mode | Single-mode polarization-maintaining fiber output, FC/APC Connectors |
| Beam Quality | M 2 <1.1 |
| Polarization Extinction Ratio | >20dB,Linear |
| Cooling | Air Cooling |
| Temperature | 15-30°C |
| Power Supply | 100-240V, AC, 50/60Hz |
| Power Consumption | <100W |
| Weight | <35kg |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
