Precilasers

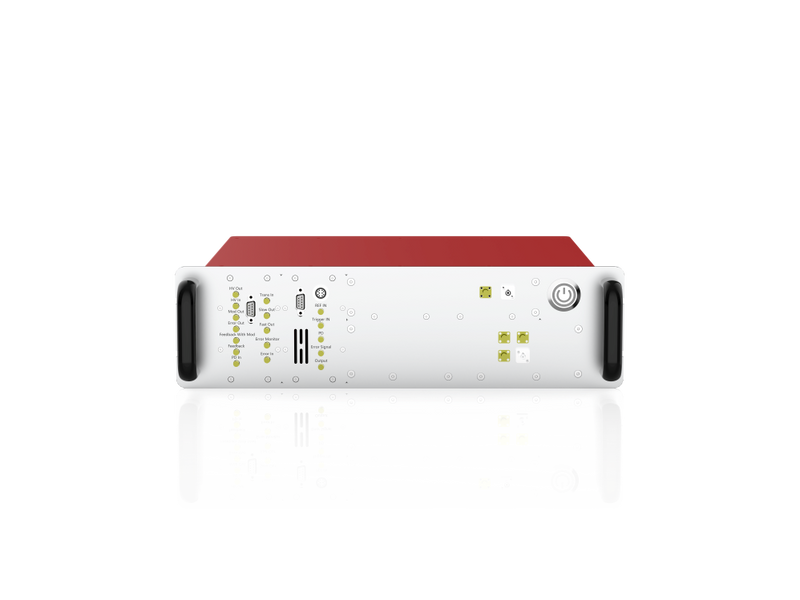

Atomic/Molecular frequency stabilization system
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Single-mode polarization-maintaining fiber input, FC/APC connector
Features
- High Frequency Stability Portable
- All
- Frequency
- Stabilized Optical Path
Applications
- Optical Precision Measurement Quantum
- Computing Quantum Precision Measurement
| Models | Preci-MTS-Rb | Preci-MTS-Cs |
|---|---|---|
| Spectral Line Generation Method | Modulation transfer spectroscopy | Modulation transfer spectroscopy |
| Modulation Frequency | 2-30MHz digitally adjustable | 2-30MHz digitally adjustable |
| De-modulation Phase | 0-360° digitally adjustable | 0-360° digitally adjustable |
| Error Signal Amplitude | >200mVpp | >200mVpp |
| Optical Packing | All-fiber structure | All-fiber structure |
| Spectrum Generation | Built-in Rb Cell | Built-in Cs Cell |
| Input | Single-mode polarization-maintaining fiber input, FC/APC connector | Single-mode polarization-maintaining fiber input, FC/APC connector |
| Operation Mode (feedback control signal output) | 3mW 780nm input | 3mW 852nm input, |
| Configuration | Include PD, Rb/Cs Cell, EOM, modulation and demodulation circuit | Include PD, Rb/Cs Cell, EOM, modulation and demodulation circuit |
| Locking Accuracy | <±100kHz@24h | <±100kHz@24h |
| Partnumber | Preci-SAS-Rb | Preci-SAS-Cs |
| Spectral Line Generation Method | Saturation absorption spectrum | Saturation absorption spectrum |
| Modulation Frequency | 10kHz-100kHz & 2-30MHzDigitally adjustable | 10kHz-100kHz & 2-30MHzDigitally adjustable |
| De-modulation Phase | 0-360°Digitally adjustable | 0-360°Digitally adjustable |
| Error Signal Amplitude | >200mVpp | >200mVpp |
| Optical Packing | All-fiber structure | All-fiber structure |
| Spectrum Generation | Built-in Rb Cell | Built-in Cs Cell |
| Input | Single-mode polarization-maintaining fiber input, FC/APC connector | Single-mode polarization-maintaining fiber input, FC/APC connector |
| Operation Mode | 3mW 780nmInput, feedback control signal output | 3mW 852nm input, feedback control signal output |
| Configuration | Include PD, Rb/Cs bulb, modulation and demodulation circuit | Include PD, Rb/Cs bulb, modulation and demodulation circuit |
| Locking Accuracy | <±150kHz@24h | <±150kHz@24h |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
