25 mm Travel Stainless Steel Manual Translation Stage LSS65-25C1
LSS65-25C1$589.20
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25C1 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 25 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

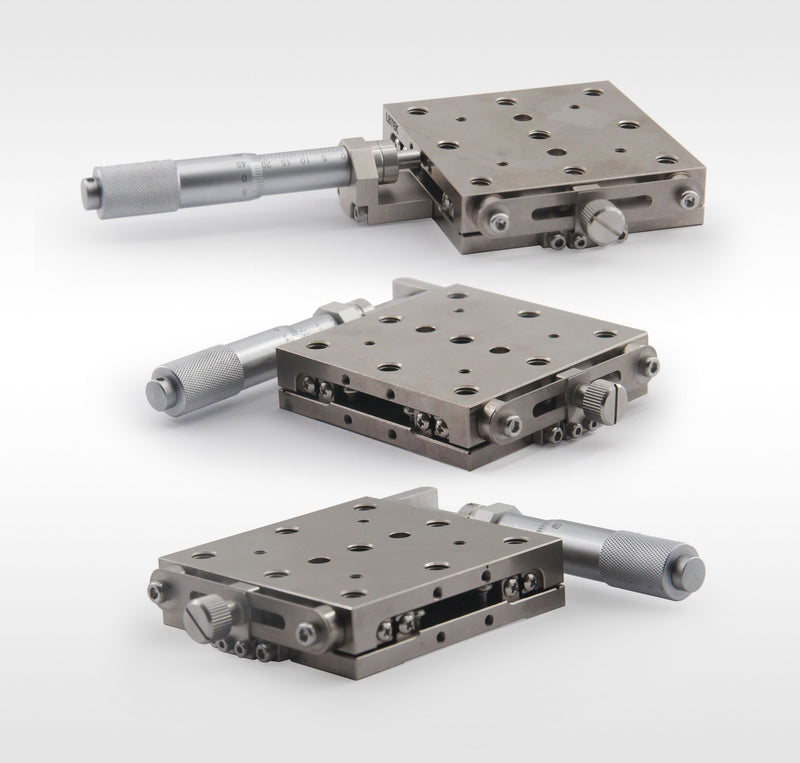

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature single-axis drive with 1 micrometer driver, providing 25 mm travel and 10 Ī¼m minimum graduation. The stage surface measures 65 mm Ć 65 mm with M6 tapped holes.
Key Features
- Single-axis drive with standard micrometer head;
- Stage size: 65Ć65 mm;
- Travel: 25 mm;
- Minimum scale: 10 Ī¼m;
Application
25 mm travel stainless steel manual translation stage mounted on breadboard.
| Material | 440C stainless steel |
| Main surface treatment | Nickel plating |
| Number of axes | Single axis |
| Drive position | End direct drive |
| Tabletop size | 65 mmĆ65 mm |
| Stage Travel | 16 mm |
| stroke | 25 mm |
| Micrometer head minimum scale | 10 Ī¼m |
| Installation Method | 25 mm |
| Tabletop threaded hole specifications | M6 |
| Position Repeatability | ā¤10Ī¼m |
| Mounting method | M6 |
| Weight | 0.5 kg |
| Applicable diameter | 20 kg |
| Locking Method | positioning pin Ć2 + screw Ć4 |
No CAD drawings available for this product.
