25 mm Travel Stainless Steel Manual Translation Stage LSS65-25L3
LSS65-25L3$1,979.42
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25L3 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 25 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

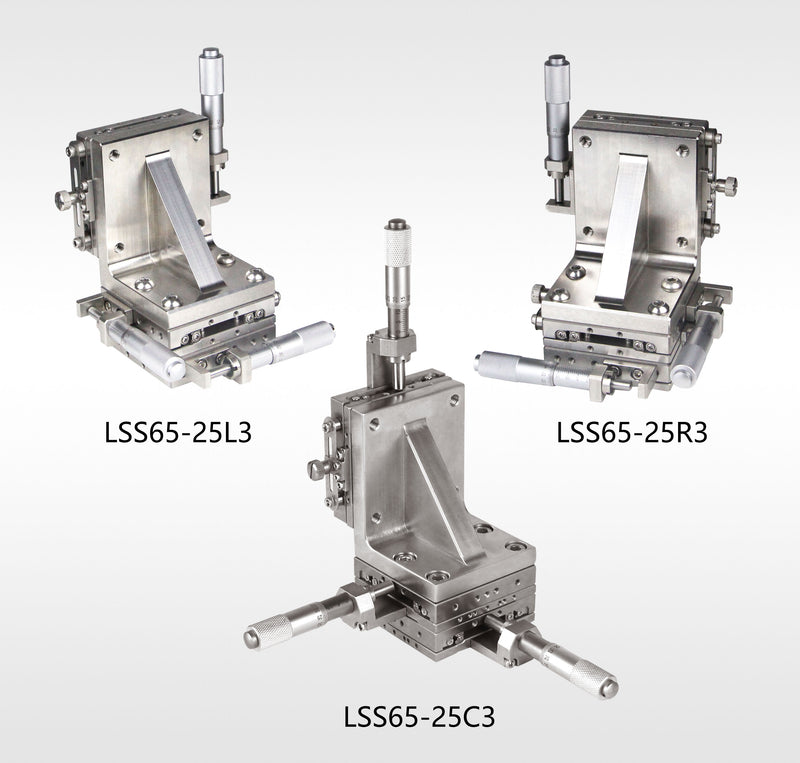

The three-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature three-axis drive with 3 micrometer drivers, providing 25 mm travel and 10 Ī¼m minimum graduation. The stage surface measures 65 mm Ć 65 mm with M6 tapped holes.
Key Features
- Three-axis drive with standard micrometer head;
- Stage size: 65 mm Ć 65 mm;
- Travel: 25 mm;
- Minimum graduation: 10 Ī¼m;
Application
The RP-1B rotary stage is mounted on a three-axis stainless steel translation stage.
| Material | 440C stainless steel |
| Installation Method | 25 mm |
| Tabletop size | 65 mmĆ65 mm |
| Number of axes | Three-axis |
| stroke | 25 mm |
| Micrometer head minimum scale | 10 Ī¼m |
| Drive position | Left-side drive |
| Main surface treatment | Nickel plating |
| Tabletop threaded hole specifications | M6 |
| Repeatability | ā¤15 Ī¼m |
| Weight | 2.4 Kg |
| Load Capacity | 4 Kg |
| Attribute 1896 | 30 Ī¼m |
| Mounting method | Ć5 mm |
No CAD drawings available for this product.
Product Family: 25 mm Travel Stainless Steel Manual Translation Stage (10 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 65 mm Stage Mounting Base DMP-65 |
DMP-65
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25L3 Current |
LSS65-25L3
| — | — | — | |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25R3 |
LSS65-25R3
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25C3 |
LSS65-25C3
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25L2 |
LSS65-25L2
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25R2 |
LSS65-25R2
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25C2 |
LSS65-25C2
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25C1 |
LSS65-25C1
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25L1 |
LSS65-25L1
| — | — | — | View |
| 25 mm Travel Stainless Steel Manual Translation Stage LSS65-25R1 |
LSS65-25R1
| — | — | — | View |
