25 mm Travel Stainless Steel Manual Translation Stage LSS65-25R3
✔ In Stock — Ships Today

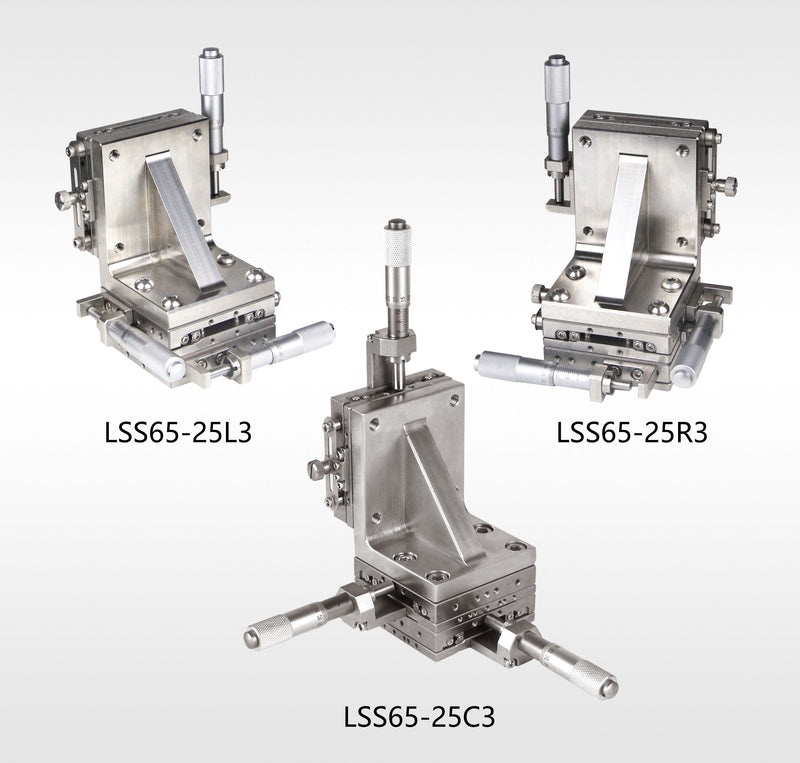

The three-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature three-axis drive with 3 micrometer drivers, providing 25 mm travel and 10 μm minimum graduation. The stage surface measures 65 mm × 65 mm with M6 tapped holes.
Key Features
- Three-axis drive with standard micrometer head;
- Stage size: 65 mm × 65 mm;
- Travel: 25 mm;
- Minimum graduation: 10 μm;
Application
The RP-1B rotary stage is mounted on a three-axis stainless steel translation stage.
| Material | 440C stainless steel |
| Installation Method | 25 mm |
| Tabletop size | 65 mm×65 mm |
| Number of axes | Three-axis |
| stroke | 25 mm |
| Micrometer head minimum scale | 10 μm |
| Drive position | Right-side drive |
| Main surface treatment | Nickel plating |
| Tabletop threaded hole specifications | M6 |
| Repeatability | 15 μm |
| Mounting method | Ø5 mm |
| Weight | 2.4 Kg |
| Load Capacity | 4 Kg |
| Attribute 1896 | 30 μm |
