25 mm Travel Stainless Steel Manual Translation Stage LSS65-25L1
✔ In Stock — Ships Today

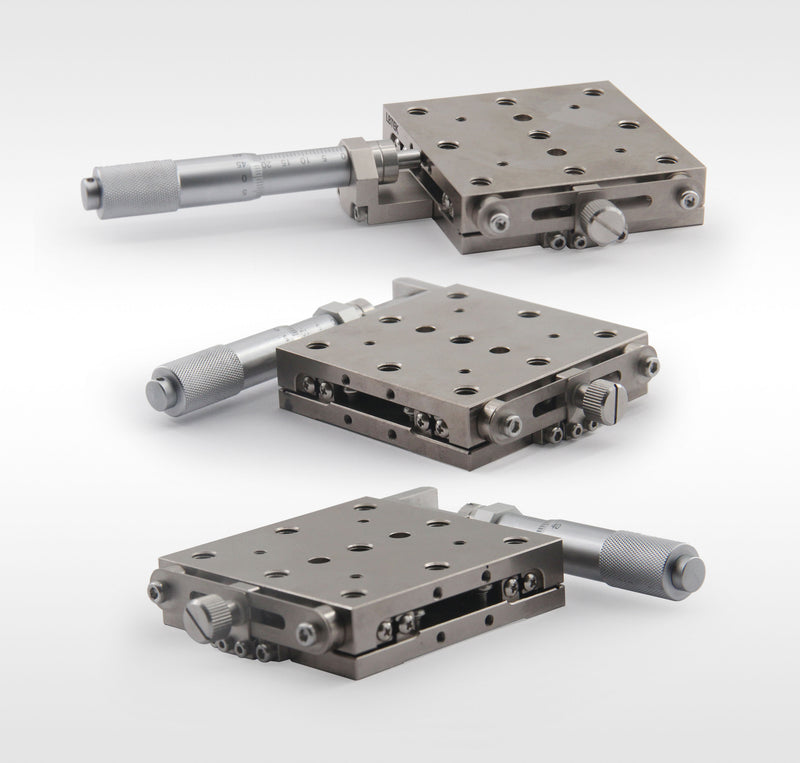

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature single-axis drive with 1 micrometer driver, providing 25 mm travel and 10 μm minimum graduation. The stage surface measures 65 mm × 65 mm with M6 tapped holes.
Key Features
- Single-axis drive with standard micrometer head;
- Stage size: 65×65 mm;
- Travel: 25 mm;
- Minimum scale: 10 μm;
Application
25 mm travel stainless steel manual translation stage mounted on breadboard.
| Material | 440C stainless steel |
| Installation Method | 25 mm |
| Tabletop size | 65 mm×65 mm |
| Number of axes | Single axis |
| stroke | 25 mm |
| Micrometer head minimum scale | 10 μm |
| Drive position | Left-side drive |
| Main surface treatment | Nickel plating |
| Stage Travel | 16 mm |
| Tabletop threaded hole specifications | M6 |
| Position Repeatability | ≤10 μm |
| Mounting method | M6 |
| Weight | 0.5 kg |
| Applicable diameter | 20 kg |
| Locking Method | positioning pin ×2 + screw ×4 |
