45° Mounts — Model FHB45
✔ In Stock — Ships Today

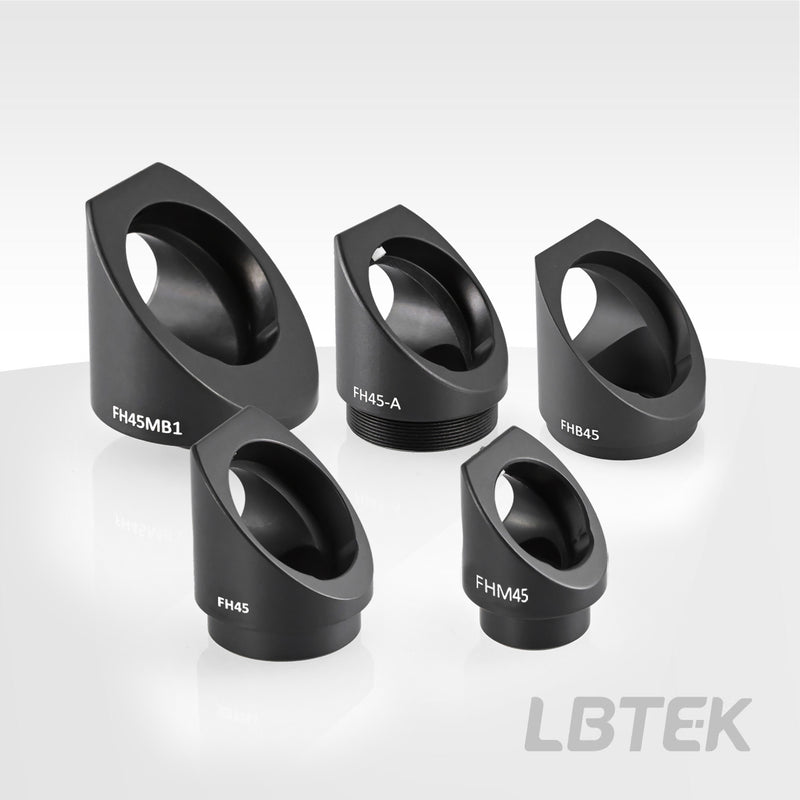

The 45° Mount provided by LBTEK enables a 90° deflection of the light path. The 45° fixed mount can accommodate optical components with three standard sizes: 12.7 mm, 25.4 mm, and 50.8 mm in diameter, secured by top screws. The clamping part offers two connection methods: smooth bores and tapped holes. The fixed mirror mount is compatible with standard O-type mirror mounts and can be integrated into a 30 mm coaxial system.
Key Features
- Available in three optical component diameter specifications: 12.7 mm, 25.4 mm, and 50.8 mm.
- Optical components secured with set screws
- Compatible with standard O-type mirror mounts for integrated use
Application
The fixed 45° mount is commonly used for holding reflecting mirrors.
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø50.8 mm |
| Minimum thickness for mounted optical components | 5.7 mm |
| Inner Diameter (ID) | 50.8 mm |
| Clamping area diameter | Ø50.8 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 45° Mounts (15 variants)
