45° Mounts — Model RAMC-1A
✔ In Stock — Ships Today

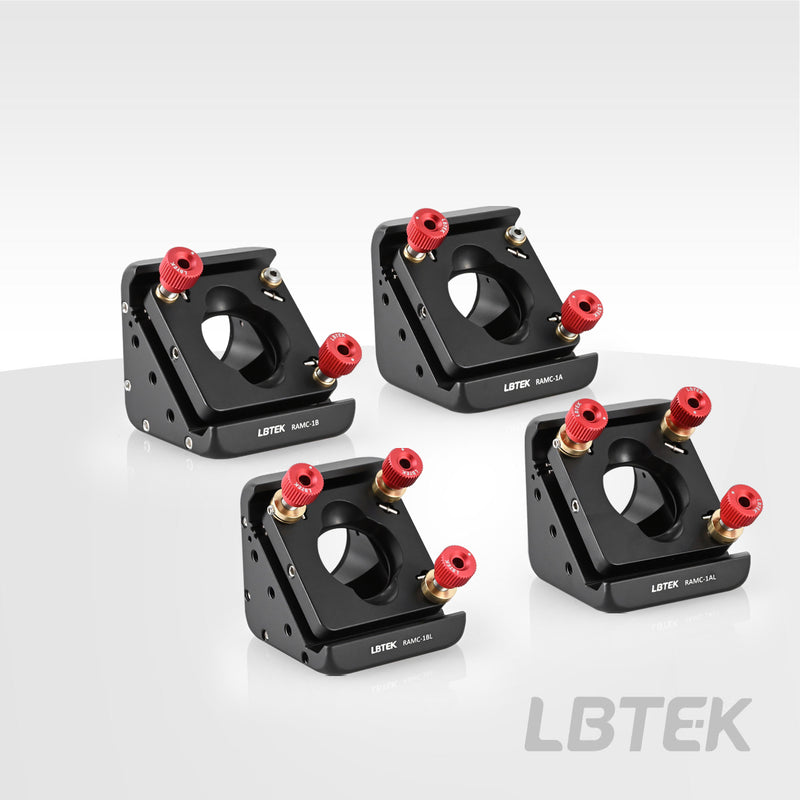

The LBTEK Coaxial System Right-Angle Mount is designed for mounting mirrors at a 45° angle relative to the optical axis. It is compatible with 30 mm coaxial systems and optimized for compact system integration. This mount features an SM1 tapped holes on both the input and output end faces, making it compatible with Ø25.4 mm lens tubes. The beveled surface accommodates Ø25.4 mm optical components with a minimum thickness of 3 mm, secured by set screws. Equipped with three adjusters, it allows for ±4° pitch and yaw adjustments, as well as ±2.5 mm linear displacement adjustments. The end faces are perpendicular. Two mounting options are available for fixing Ø6 mm coaxial post to the end faces: smooth bores and tapped holes. Adjusters are available with or without locking.
Key Features
- Applicable to optical components of Ø25.4 mm minimum thickness 3 mm
- ±4º pitch and yaw adjustment, linear translation ±2.5 mm
- Compatible with 30 mm coaxial system, optional tapped holes and smooth bores on input and output end faces
- Optional locking/non-locking versions of adjusters
Application
Tapped hole (left) and smooth bore (right) for coaxial rods
