45° Mounts — Model CRM45-1AS
✔ In Stock — Ships Today

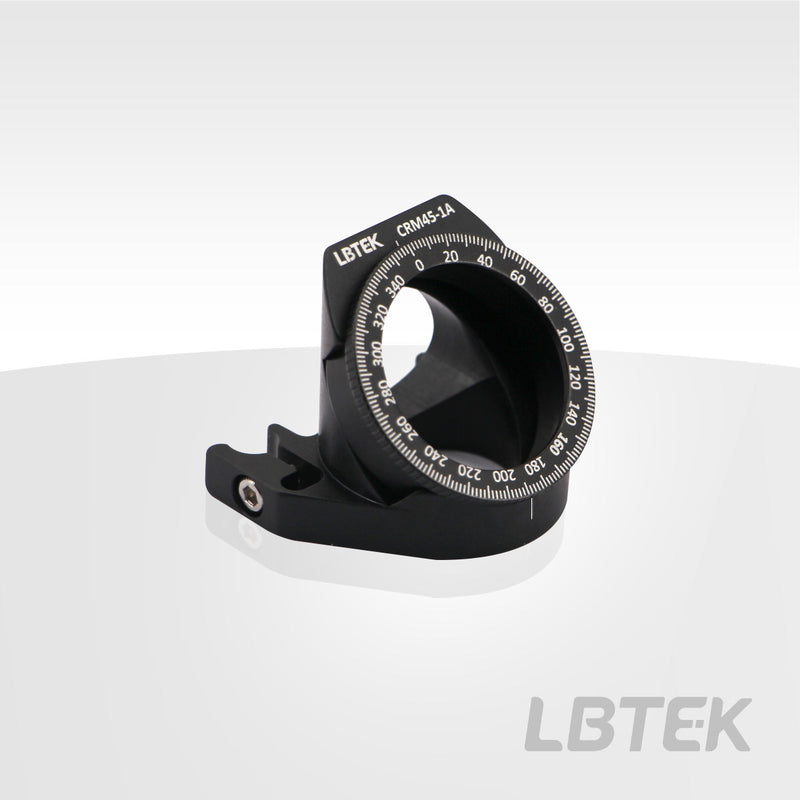

The LBTEK Coaxial System Right Angle Rotation Adjuster CRM45-1A is designed for 30 mm coaxial systems, featuring a flexible locking mechanism for quick detachment. The embedded mount CRM45-1AS is secured with set screws, allowing for quick detachment and is sold separately. Note: The embedded mount must be removed before mounting the adjuster into the coaxial system. After locking the adjuster onto the coaxial post, reattach the embedded mount to the base for final fixation.
Key Features
- Applicable to optical component diameter: Ø25.4 mm
- Maximum thickness of mounted optical component: 5 mm
- 360° rotatable adjustment
Application
CRM45-1A used for coaxial systems
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
