45° Mounts — Model RAMC-1BP
✔ In Stock — Ships Today

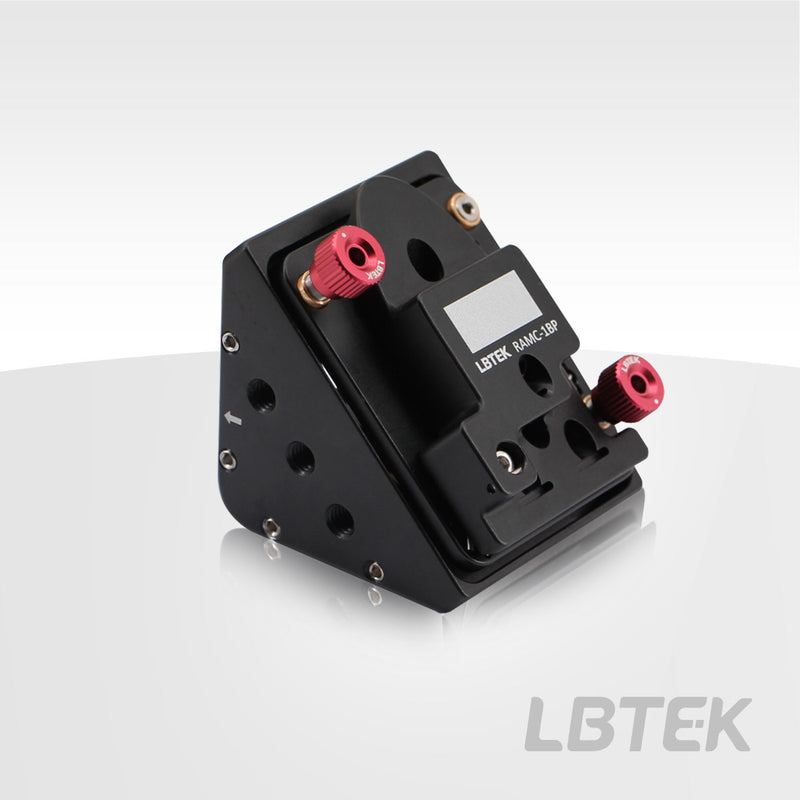

The LBTEK Coaxial System Right Angle Mount RAMC-1BP can be used to mount off-axis parabolic mirrors, compatible with 30 mm coaxial systems, and suitable for compact system integration. This mirror mount features an SM1 tapped hole on both the input and output end faces, compatible with lens tubes of 25.4 mm diameter. The off-axis parabolic mirror is mounted to the quick-detachment mounting plate using the included screws and pins. Through a steel ball and dual-wire positioning structure, it allows for quick detachment while providing high repeatability. After positioning, it is secured with non-removable M3 screws. Equipped with three adjusters, it enables ±3.4° pitch and yaw adjustments, as well as ±2.5 mm linear displacement adjustments. The input and output end faces are perpendicular to each other.
Key Features
- Compatible with 25.4 mm diameter Off-Axis Parabolic Mirrors
- ±3.4º pitch and yaw adjustment, linear displacement ±2.5 mm
- Input and output end faces being perpendicular
Application
RAMC-1BP being used for mounting off-axis parabolic mirrors
No specifications available for this product.
No documents available for this product.
No CAD drawings available for this product.
Product Family: 45° Mounts (15 variants)
