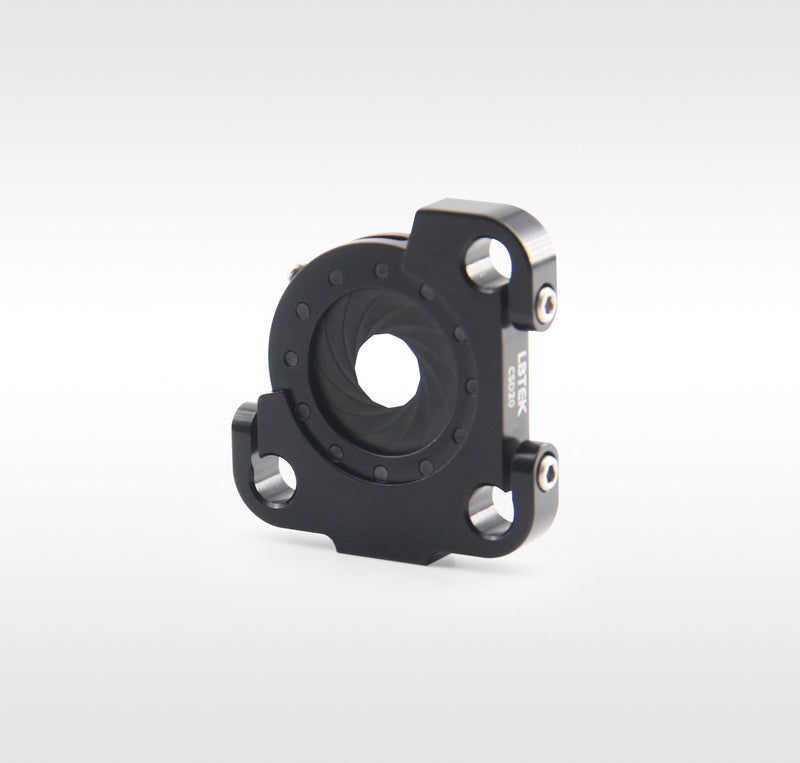

Adjustable diaphragm, compatible with coaxial systems CSD20
CSD20$157.08
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Adjustable diaphragm, compatible with coaxial systems CSD20 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Key specification: clear aperture: Ø1 mm~ Ø20.5 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today
LBTEK offers adjustable iris compatible with coaxial systems, featuring M4 threaded holes at the bottom of the housing. The housing includes three Ø6 mm holes for compatibility with MOP series coaxial mounting posts and incorporates flexible clamping adjustable with a 2 mm hex key.
Key Features
- Compatible with 30 mm coaxial system continuously adjustable diaphragm
- Housing base with M4 threaded hole
- Black anodized aluminum housing
Application
The adjustable diaphragm can be installed in free space.
| Clear Aperture | 1.0 mm |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Adjustable diaphragm, compatible with coaxial systems (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Adjustable diaphragm, compatible with coaxial systems CSD50 |
CSD50
| — | — | — | View |
| Adjustable diaphragm, compatible with coaxial systems CSD8 |
CSD8
| — | — | — | View |
| Adjustable diaphragm, compatible with coaxial systems CSD20 Current |
CSD20
| — | — | — |
