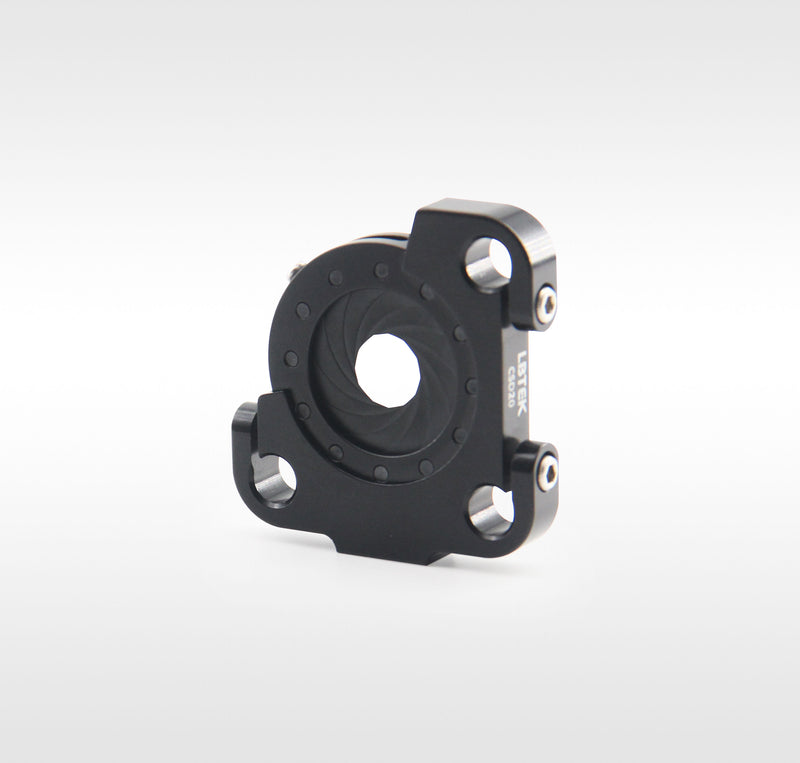

Adjustable diaphragm, compatible with coaxial systems CSD50
✔ In Stock — Ships Today
LBTEK offers adjustable iris compatible with coaxial systems, featuring M4 threaded holes at the bottom of the housing. The housing includes three Ø6 mm holes for compatibility with MOP series coaxial mounting posts and incorporates flexible clamping adjustable with a 2 mm hex key.
Key Features
- Compatible with 30 mm coaxial system continuously adjustable diaphragm
- Housing base with M4 threaded hole
- Black anodized aluminum housing
Application
The adjustable diaphragm can be installed in free space.
| Clear Aperture | 0.7 mm |
| Lead Time | 4.0 weeks |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Adjustable diaphragm, compatible with coaxial systems (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Adjustable diaphragm, compatible with coaxial systems CSD50 Current |
CSD50
| — | — | — | |
| Adjustable diaphragm, compatible with coaxial systems CSD8 |
CSD8
| — | — | — | View |
| Adjustable diaphragm, compatible with coaxial systems CSD20 |
CSD20
| — | — | — | View |
