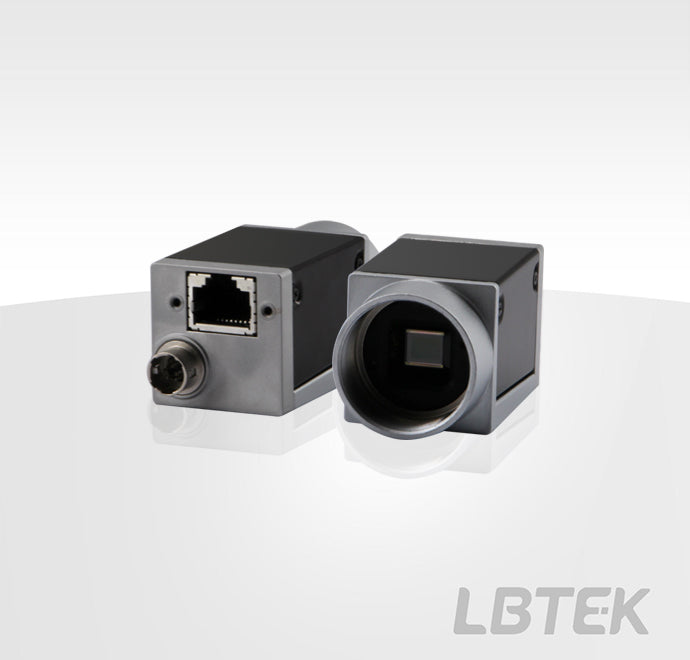

Basler ace Camera — Model acA1300-60gmNIR

1.3 MP Basler ace CMOS Camera with GigE interface; 1/1.8'' sensor, 5.3 μm×5.3 μm pixel size.

Overview

Basler CMOS Cameras offer both GigE and USB 3.0 data connectors (optional), featuring high-pixel, high-frame-rate CMOS chips with a maximum frame rate of up to 520 fps and resolutions ranging from 0.39 MP to 20 MP. The compact design features a mechanical housing with a C-Mount optical connector for easy integration into 30 mm coaxial systems, along with three M3 and four M2 threaded holes on the bottom for mounting in free space. Monochrome sensor cameras provide parameters such as quantum efficiency, dark noise, full-well capacity, and signal-to-noise ratio.

Key Features

GigE or USB 3.0 data transfer connector
Camera resolution ranges from 39W to 2000W pixels
C-Mount optical connector with 3 M3 and 4 M2 threaded holes on the bottom

Resolution	1282×1026
Camera size	42 mm×29 mm×29 mm
Power Requirements	NPE (2.6 W) or 12 VDC (2 W)
Trigger mode	Hardware triggering or camera API programming
Bit Depth	12 bits
Data interface	GigE
Sensor Type	CMOS
CMOS size	1/1.8''
Pixel size	5.3 μm×5.3 μm
Effective pixels	1.3 MP
Active image size	6.8 mm×5.4 mm
color	Near-infrared sensor (monochrome)
Frame rate	60 fps
Shutter Type	Global Shutter & Rolling Shutter
Optical Interface	C-Mount
Mounting threads	Bottom (3×M3, 4×M2)
Quantum Efficiency	59.0 %
Full well capacity	7.4 ke¯
Readout noise	23.2 e¯
Signal-to-noise ratio	38.7 dB
Dynamic range	50.1 dB
OS Support	Windows, Linux, macOS
Operating temperature	0-50 ℃
weight	90 g

Specification Sheet PDF — Download

User Manual PDF

CAD Drawing Download

Spectral Response 1 — Graph

Spectral Response 2 — Graph

Spectral Response 3 — Graph

Spectral Response 4 — Graph
