acA1300-60gc
LBTek

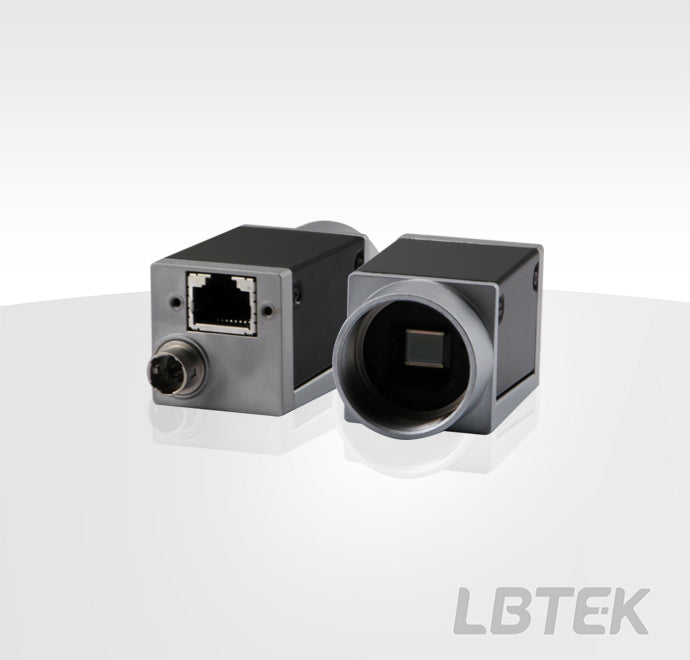

Basler CMOS Cameras GigE Data Transmission Connector acA1300-60gc

acA1300-60gc
Contact for pricing
In Stock
Contact Sales

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

The Basler CMOS Camera features a GigE data transmission connector and utilizes high-pixel, high-frame-rate CMOS sensors, with a maximum frame rate of up to 60 fps and resolutions ranging from 1.3 MP to 20 MP. Its features a compact design. Its mechanical housing includes a C-Mount optical connector for easy integration into 30 mm coaxial systems, along with three M3 and four M2 threaded holes on the bottom for flexible mounting options. In addition to the acA1300-60gm, acA1300-60gc, and acA1300-60gmNIR models, the camera offers functionalities such as 5×5 debayering (to prevent color errors), pseudo-color removal, noise reduction, and sharpness enhancement.

Key Features

  • Resolution: 130 W~2000 W pixels
  • C-Mount optical connector
  • Dimensions: 42 mm×29 mm×29 mm

Application

Structural Schematic Diagram of acA1920-50gm

Operating Temperature 0-50 ℃
Threaded hole Bottom (3×M3, 4×M2)
Weight 90 g
Effective pixels 1282×1026
Pixel size 5.3 μm×5.3 μm
CMOS size 1/1.8''
Material 60 fps
Data Transfer Interface GigE
Shutter Mode Global Shutter & Rolling Shutter
Optical Interface C-Mount
Sensor Type Color sensor
Resolution 2 MP
Operating System Windows、Linux、macOS
Sensor Size 6.8 mm×5.4 mm
Bit depth 12 bits
Trigger Mode Hardware triggering or camera API programming
Power Consumption NPE (2.6 W) or 12 VDC (2 W)
Camera Body Dimensions 42 mm×29 mm×29 mm
No documents available for this product.
No CAD drawings available for this product.
