GAMA high repetition pulsed laser delivers 60–1000 mJ pulse energy, selectable 100–500 Hz repetition rates and up to 100 W average power — ideal for LiDAR, OPO pump, PIV.

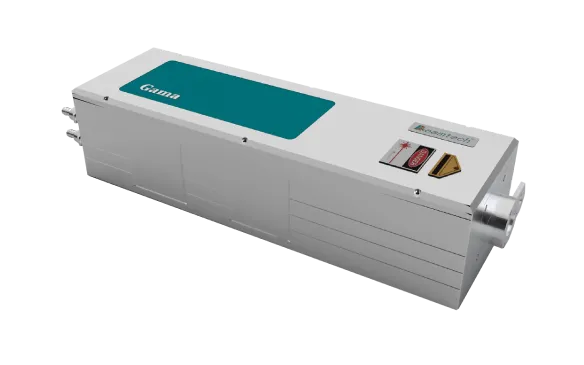

The Gama high frequency laser series is a diode-pumped solid-state laser (DPSS) that combines high repetition rate and high energy, widely used in applications such as LiDAR, pumping OPO, pumpingTisapphire laser, and laser ablation. The laser offers different repetition rates  100Hz, 200Hz, 300Hz, and 500Hz  with pulse energy outputs ranging from 60mJ to 1000mJ. The maximum average power is up to 100W.

Gama series features a unique resonator design that ensures excellent beam quality at high repetition rates. Additionally, the laser is compact, robust, and durable, with SHG, THG, and FHG optional.

Key Features

  • Multiple harmonics optional
  • Excellent beam quality
  • Repetition rate up to 500Hz
  • Compact size and easy to integrate
ModelsGama-M/G60Gama-M/G100Gama-M/G150Gama-M/G200Gama-M/G400Gama-A200Gama-A400Gama-A600Gama-A800Gama-A1000Gama-S-10Gama-S-30Gama-S-100
Wavelength1064nm1064nm1064nm1064nm1064nm1064nm1064nm1064nm1064nm1064nm1064nm1064nm1064nm
Output Energy60mJ100mJ150mJ200mJ400mJ200mJ400mJ600mJ800mJ1000mJ10mJ30mJ100mJ
Repetition RateUp to 500HzUp to 300HzUp to 200HzUp to 100HzUp to 100HzUp to 500HzUp to 500HzUp to 200HzUp to 100HzUp to 100HzUp to 1000HzUp to 1000HzUp to 500Hz
Work ModeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW DiodeEO Q-switch QCW laser & pumped by QCW Diode
Laser ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeMulti-Mode or Flat-top ModeReal TEM00Real TEM00Real TEM00
Diameter4mm5mm6mm6mm8mm5mm6mm8mm8mm10mm3mm3mm6mm
DivergenceMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mradMulti-Mode: ≤3mrad; Flat-top Mode: ≤1mrad≤1mrad≤1mrad≤1mrad
Pulse Duration8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns8~12ns
Energy Stability(RMS)≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤1%@1064nm ≤2%@532nm≤2%≤2%≤2%
Jitter(RMS)<1ns<1ns<1ns<1ns<1ns<1ns<1ns<1ns<1ns<1ns<1ns<1ns<1ns
CoolingChillerChillerChillerChillerChillerChillerChillerChillerChillerChillerChillerChillerChiller
Electrical Service220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A220V-50/60Hz-10A
1. SHG, THG&FHG are available for optional.
2. Measured at the laser output.
3. Full angle at 1/e² of the peak.
4. Full width half max (FWHM).
5. Dev. to average (shot to shot for 99% of pulses).
6. With respect to external trigger.

Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
