Precilasers

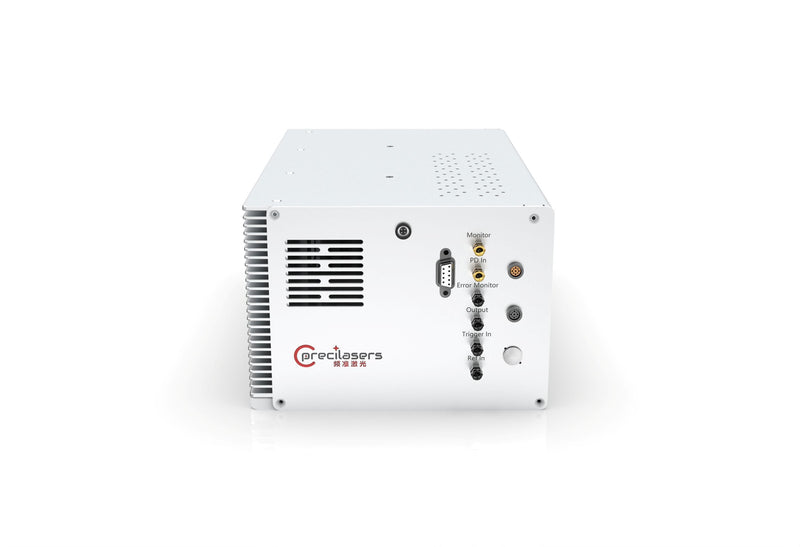

Beat frequency phase lock module
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Products Seed laser Low noise laser amplifier Narrow linewidth laser Ultra-stable laser and frequency stabilization system Optical frequency comb High performance frequency stabilized laser High power UV laser Pulsed laser Device High-precision swept laser Wide-Tunable Continuous-Wave Single-Frequency Infrared Laser Supercontinuum Light Source
Features
- Large Locking Range Support
- Frequency Hopping Automatic Lock
| Models | PrecilBeat |
|---|---|
| Configuration | Frequency and phase detection module + PID module |
| Lock Frequency Difference | 50 MHz-8 GHz |
| Locking Adjustment Resolution | 1kHz |
| Reference Input Frequency | 100MHz |
| Reference Signal | Switchable internal and external reference |
| Analog PID Output Range | ±5V |
| Analog PID Output Bandwidth | 500kHz |
| Error Signal Generation | Digital frequency and phase detection |
| Frequency Hopping and Automatic Locking | support |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
