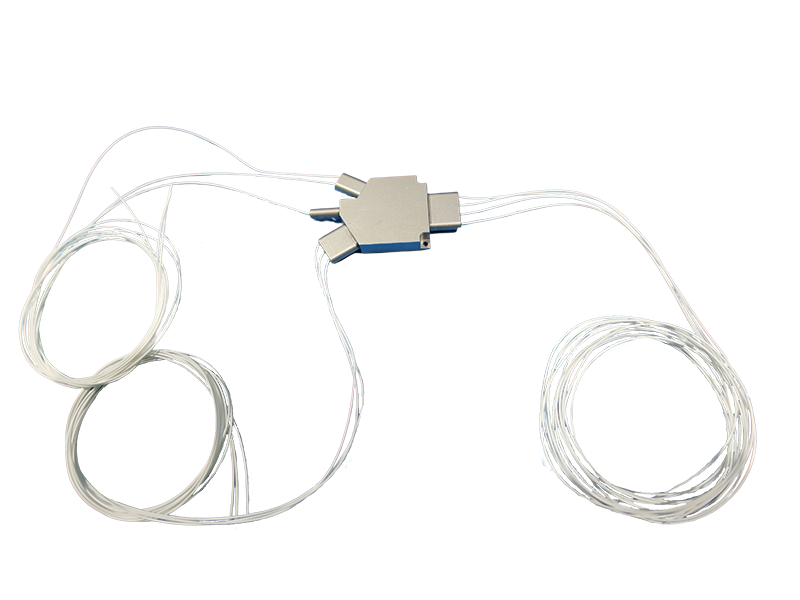

High performance fiber splitter
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
High performance fiber splitter Precilasers' high-performance fiber splitters achieve high polarization extinction ratio fiber splitting in a small module, which is stable and reliable.
Applications
- Quantum Precision Measurement Optical
- Precision Measurement
| Models | Specification |
|---|---|
| Wavelength Optional Range | 500-2000nm |
| Center Wavelength | 780nm, 633nm |
| Polarization Extinction Ratio | >23dB |
| Number of Input Channels | 1, More channels can be customized |
| Number of Output Channels | 2-9, More channels can be customized |
| Output Power Optical Consistency | <10% |
| Bandwidth | >±10nm |
| Additional Insertion Loss | <1.5dB@780nm |
| Return Light Loss | >-45dB |
| Maximum Input Power | >5W@780nm, >1W@509nm |
| Input and Output Connecotor | FC/APC |
| Casing | 0.9mm Loose tube / 3mm Loose tube |
| Temperature | 0-50°C |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
