Precilasers

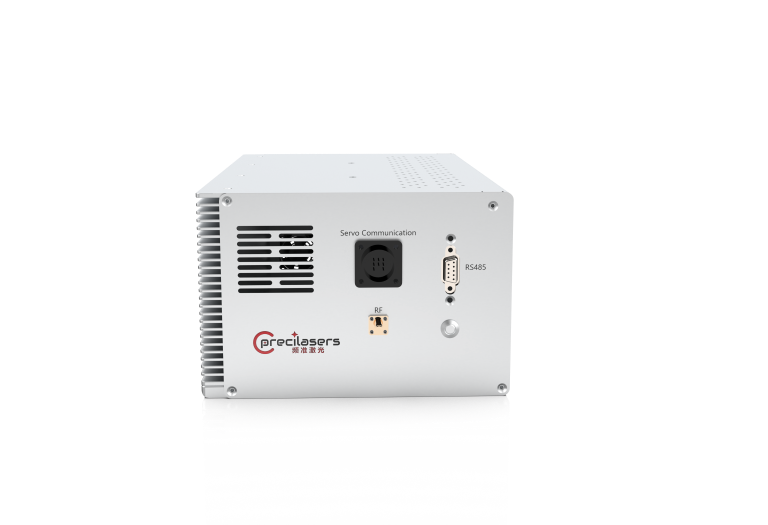

PDH frequency locking module
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
High impedance load bandwidth 50 kHz Capacitive load bandwidth (small signal output 0.1 uF load) 20 kHz
Features
- High Bandwidth Low Noise
- Can Achieve Hz Line
- Width Ultra
- Stable Laser Automatic Lock
- Back
Applications
- Laser Frequency Stabilization Precision
- Measurement
| Models | PreciLock-L | PreciLock-PDH |
|---|---|---|
| Configuration | Modulation & De-modulation module + PID module | Modulation & De-modulation module + PID module |
| Modulation Frequency Range | 10kHz-100kHz | 10kHz-30MHz |
| Modulation Frequency Resolution | 1kHz | 1kHz |
| Demodulation Phase | 0-360° | 0-360° |
| Output Modulation Voltage Range | >10dBm | >10dBm |
| Fast Analog Pid Bandwidth | >8MHz | >8MHz |
| Fast Analog Pid Output Voltage Range | -4 V-4 V | -4 V-4 V |
| Low Speed Analog Pid Bandwidth | >3MHz | >3MHz |
| Low Speed Analog Pid Output Voltage Range | -5V~+5V | -5V~+5V |
| High Voltage Amplifier Output Voltage Range (optional) | 0-110V | 0-110V |
| High Voltage Amplifier Gain (optional) | 15 | 15 |
| High Voltage Amplifier Bandwidth (optional) | High impedance load bandwidth 50 kHz Capacitive load bandwidth (small signal output 0.1 uF load) 20 kHz | High impedance load bandwidth 50 kHz Capacitive load bandwidth (small signal output 0.1 uF load) 20 kHz |
| High Voltage Amplifier Maximum Output Current (optional) | <50 mA | <50 mA |
| PD Signal Input Range | <1 Vpp | <1 Vpp |
| PD Signal Input Impedance | 50 Ω, AC coupling | 50 Ω, AC coupling |
| Output Scanning Signal | 20Hz,Triangle Wave, -1 V~+5 V | 20Hz,Triangle Wave, -1 V~+5 V |
| Power Supply | 200-240V, AC, 50/60Hz, Optional 110V | 200-240V, AC, 50/60Hz, Optional 110V |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
